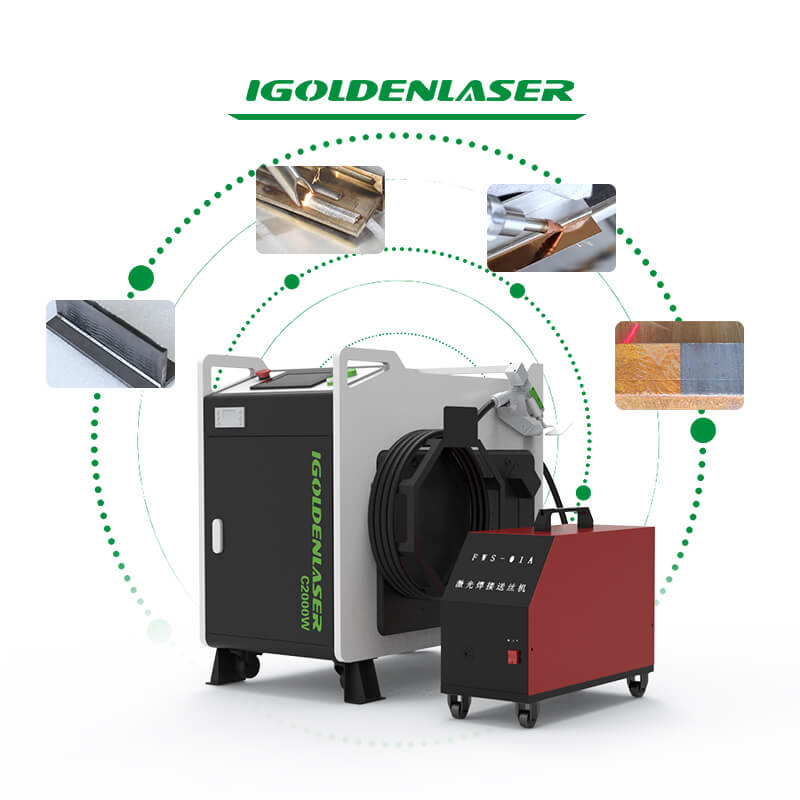

Handheld “4 in 1” Fiber Laser Welding Machine

5 in 1 handheld metal laser welding machine

4-in-1 Handheld Fiber Laser Welding Machine

4-in-1 handheld laser welding, cutting, and cleaning machine is a versatile tool that integrates multiple functions into one device. This type of machine typically combines four different capabilities related to laser processing.Combining these four functions into a single handheld device offers several advantages, including increased efficiency, reduced setup time, and enhanced versatility in various applications.

Functional application: It can be switched between welding, cutting and cleaning.

Send Inquiry Chat Now

Categories: Laser Cleaning Machine, Laser Welding Machine

Description
Reviews (0)

IGCL-AC（1000w-3000w）

HandHeld 4-in-1 Laser Machine

4-In-1 laser welding, cleaning, cutting machine is composed of fiber laser generator, handheld laser gun, water chiller, and 4 in 1 control system, which is used for laser welding, cleaning and handheld cutting. Each handheld laser gun is portable, convenient, and easy to use.When you need to handle different processes, you can quickly change nozzles, lenses, and control systems. 4-in-1 Handheld Laser Welding Cleaning and Cutting Machine can not only cut and weld metal but also clean rust, paint, resin, coating, oil, and stains.

Laser Welding:With a laser welding torch, it is a laser welding machine that can weld aluminum, stainless steel, titanium, gold, silver, copper, nickel, chromium and other metals or alloys, and can also be applied to various welding metals between different materials , such as titanium-gold, copper-brass, nickel-copper, titanium-molybdenum, etc.

Laser Cutting: Laser cutting is a process that utilizes a highly focused laser beam to cut through materials with precision. With a laser cutting gun, it is a handheld laser cutting machine suitable for cutting various metal sheets and pipes.

Welding seam cleaning function: In the welding process, the welding seam due to high temperature black, discoloration and other states, through the welding seam cleaning function, can effectively restore the true luster of the metal, make the metal surface more bright and clean.

Laser Cleaning: Laser cleaning is a non-contact surface cleaning process that uses a laser beam to remove contaminants, such as rust, paint, coatings, or debris, from the surface of a material. The laser energy vaporizes or ablates the unwanted material, leaving behind a clean surface. Laser cleaning is efficient, environmentally friendly, and does not involve the use of chemicals or abrasives.

Advantages of 4-In-1 Handheld Laser Cleaning, Welding, Cutting Machine

Lightweight flexible, simple and convenient operation, can satisfy the welding/cleaning/cutting triad, need not change point;
Laser friends invited professional international translation, can be customized a variety of language;
Handheld vibration mirror oscillating head light is adjustable, acme light, feel is first-class, deeper penetration, etc, to adapt to different customers should scene;
Portable welding head adopts protection lens and focus lens, collimating lens are all made of withdrawable type installation, convenient customer self repair change, constantly monitor the temperature;
USES the concept of human body engineering and product design, fully consider the applicability of the welding process and the long-term use of comfort;
System constantly monitor the running status of laser, cold water machine, the control panel operation monitoring and collect the running state.

TECHNICAL PARAMETER

Handheld Portable Laser 4 in 1

Model	iGCL-AC 1000	iGCL-AC 1500	iGCL-AC 2000	iGCL-AC 3000
Power	1000w	1500w	2000w	3000w
Laser Wavelength	1080(±10)nm
Laser Type	Continuous / Modulation
Max. Laser Frequency	30KHz (Customized is available)
Wave Range	0-5mm
Collimating Length	50mm
Focus Length	150mm
Gun Weight	0.85kg
Cable Length	10m(Max. Length 20m)			10m(Max. Length 15m)
Power Supply	Single-phase AC 220V±10%, 50/60Hz			Three-phase AC 380V±10%, 50/60Hz
Cooling Method	Water Cooling (1000w-2000w built-in water chiller; 3000w independent water chiller)
Machine Dimension	12006001100mm (3000w)
Packing Dimension	14007801380mm			22007801380mm
N.W / G.W	230kg/ 260kg	240kg/ 270kg	250kg/ 280kg	350kg/ 380kg

For common materials and thicknesses, the system comes with a process parameter library.

For different application scenarios, the corresponding nozzle nozzles can be easily and quickly replaced, plug and play, making tedious processing easier and higher processing efficiency.

Get Price!

Four-in-One Laser Head

The handheld laser head has a simple appearance, is small and light, and can be used by hand for a long time. The integrated design of the button and handle is simple and easy to use. It can realize three functions of welding, cleaning, and cutting through the intelligent controller according to different usage scenarios, truly realizing three functions in one machine.

Fiber Laser Welding Gun

The handheld type laser gun can do welding, cleaning, and cutting with smart controller, easy to use for flexible machining, portable with small size, low cost without consumables.

Intelligent Control System

Polymerization control function, humanized design, easy to operate.

Multiple swing modes: Line, Circle, Snowflake, Bullhead, Hot Wheels.

Support the process parameter library, which can realize the rapid storage and recall of cleaning process parameters.

Multi-language support CN, EN, RU, KR, VN, JP.

Real-time monitoring and automatic alarm, safe production and quick troubleshooting.

Fiber Laser

Stable performance, low energy consumption, low failure rate, flexible optical fiber 5-20m, flexible and convenient, can achieve outdoor work, and has a rigid protective layer.

4 in 1 Handheld Laser Cleaning Machine Applications

Handheld Laser Cleaning, Welding, Cutting Machine

The multipurpose laser machine is used in manufacturing, automotive, shipbuilding, battery, aerospace, kitchenware, shelves, elevators, guardrails, distribution boxes, ovens, metal furniture, biomedicine, powder metallurgy, jewelry, electronics, hardware, optical communication, sensor, automobile accessories, porcelain teeth, glasses, solar energy, and precision parts manufacturing.

Contact Us Today to Get Price!

Laser Cleaning Machine Buyer Guide

What is the laser welding cleaning cutting machine 4 in one ?

In fact, the laser welding cleaning and cutting machine is a handheld laser welding machine evolved into a 4-in-1 machine.The purpose of cleaning is achieved by changing the focusing mode by replacing the focusing lens of the laser welding head,The laser head remains unchanged, just disassemble the first half of the welding head,change welding focus lens to clean focus lens.

4 in One Handheld Laser Welding Cleaning Cutting Machine Features

Designed for ease of use and portability

With its lightweight and ergonomic design, it’s easy to maneuver and operate. This makes it the perfect choice for welding in tight spaces or hard-to-reach areas.

Improved precision

It uses advanced laser technology to provide high precision and accuracy. This ensures a clean and precise weld every time, with minimal distortion or discoloration.

Versatility

Our laser welding machine is suitable for welding a wide range of metal materials, including stainless steel, aluminum, copper, and more. This makes it a versatile tool for various industries, such as automotive, aerospace, and electronics.

How to buy a heldhand laser welding machine?

The handheld laser machine typically consists of a laser source, optics system, control panel, and a handheld device with a focusing mechanism. The control panel allows you to adjust various parameters, such as laser power, pulse duration, or scanning speed, to achieve the desired results for different applications.

This type of machine provides portability and ease of use, making it suitable for on-site work, small-scale manufacturing, or rapid prototyping. It offers the advantages of high precision, versatility, and the ability to work with a wide range of materials.

It’s important to note that the specific features and capabilities of a 4-in-1 handheld laser machine can vary depending on the manufacturer and model. It’s recommended to refer to the product specifications and consult with the manufacturer or supplier to understand the specific functions and limitations of the machine.

How to use a laser cleaning machine?

Laser cleaning machine has the characteristics of non-contact, no thermal effect, no mechanical force on metal surface, no consumables and low processing cost. This machine has been widely used in many industries. So how to use a laser cleaning machine after you buy one? Here are the main steps for your reference. Please always remember that you need to read the operation brochure provided by the manufacturer to understand the precautions and operation instructions. Wear protective glasses and other protective equipment to ensure your safety. And do not look directly at the laser output position with you eyes during the cleaning. Check the machine parts and make sure nothing is damaged or missing, and no dust or dirt on the machine.

Check the power supply of the machine and make sure it is grounded.
After checking the machine, insert the plug into the power socket. Turn on power switch and set parameters on the control panel.
Take out the cleaning gun and open the cover, aim the gun head at the work piece that you need to clean and start your cleaning work.
After the cleaning process, release the gun button, turn off the laser switch, turn off the power, insert the cleaning gun back into the storage box, and then unplug the power plug.
If you encounter any problems during the operation, please seek help from after-sales engineer and do not disassemble the machine by yourself. Unauthorized disassembly and assembly may damage the machine or bring danger to the operator.
