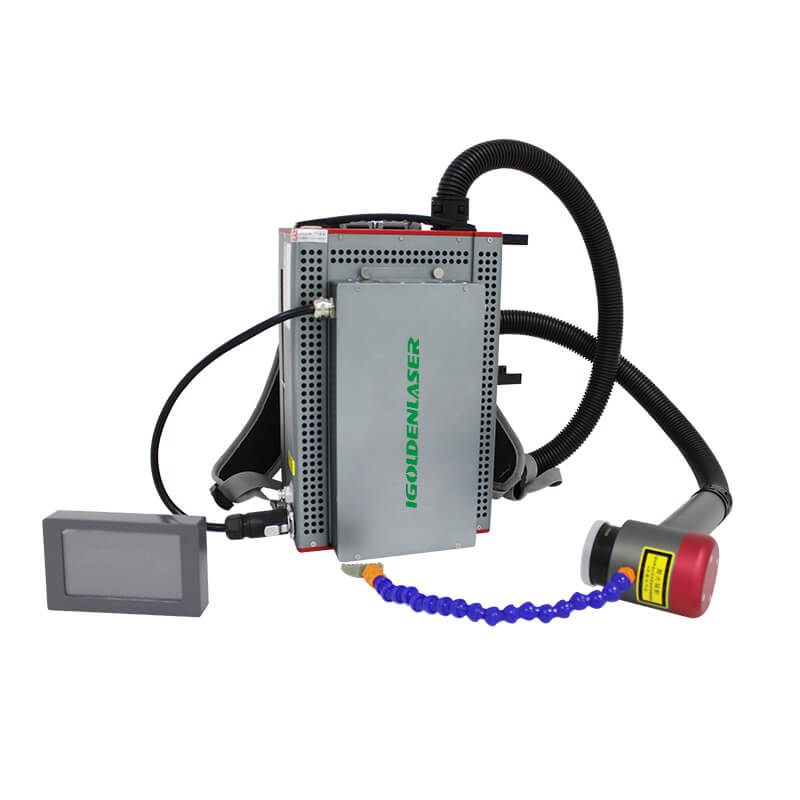

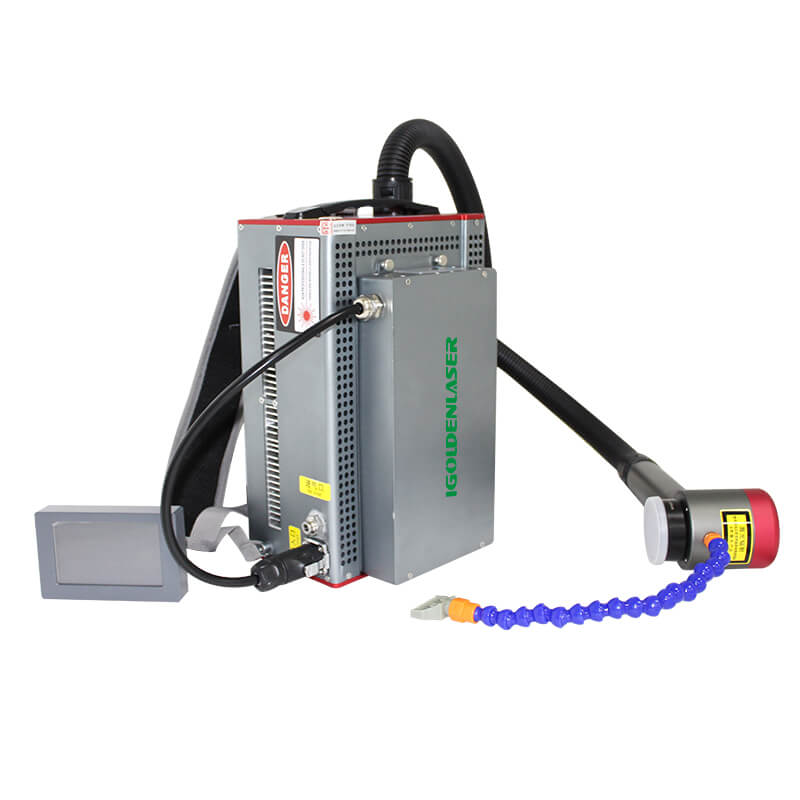

Portable Backpack Laser Cleaning Machine IGCL-MOPA

The machine does no harm to the substrate, and can efficiently, accurately and cheaply remove dirt, rust, grease, oxide, paint, coating, etc., from the surface of the material. It can meet the cleaning requirements of complex modeling and fine positioning in the field of industrial processing, achieve better cleaning effects and reduce the overall production cost.

Send Inquiry Chat Now

Category: Laser Cleaning Machine

Description
Reviews (0)

IGCL-MOPA（100w-200w）

Backpack Laser Cleaning Machine

Laser cleaning machine is the latest high-tech product. Easy to install, operate, easy to achieving automation.. Plug in power, turn on and start cleaning – without chemicals, media, dust, water. Cleaning with no detergent, no media, no dust, no water. Auto focus, can clean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.

iGCL series laser cleaning machine is the new generation of safe, high efficiency, energy saving, environment-friendly metal laser cleaning equipment, using handheld swing cleaning head, touch screen and button control, combined with the advanced integrated control system, the precision CNC fiber laser cleaning machine is assembled. It meets the cleaning requirements of complex shapes and fine positioning in the industrial processing field, and achieves higher cleanliness cleaning effects and lower overall cost production benefits.

Advantages of Backpack Laser Cleaning Machine

The chassis is small and beautiful, and the side strap is set up to hang buckle, can be shoulder-back, portable and free hands, carrying beautiful and not obtrusive, but also can be placed and used at a station;
Can be connected with external power battery, customers can be free to use the place without power supply equipment; Suitable for urban graffiti cleaning, weld cleaning, high-altitude work or can not be connected to the seiko workshop and other work scenes.
Integrated solution, low processing cost, no pollution; Optional battery 100W continuous working 80-90 minutes, customers can buy more battery swap, or use while charging;
Wireless control, remote parameter setting and light control, update parameters at any time;
Air-cooled cooling method, more lightweight and less noise.Super integrated injection molding chassis, cushioning design, stable structure, wear resistance, shock resistance and drop resistance.

TECHNICAL PARAMETER

Power supply	Standard AC220V±10%, 50/60Hz power adapter (output DC48V)
Power supply	Optional battery 100W for 80-90 minutes
Overall power consumption	＜300W
Operating ambient temperature	5℃～40℃
Working environment humidity	≤80%
Optical parameter
Average laser power	≥100W
Power instability	＜5%
Laser operation mode	Pulse
Pulse width	150-190ns
Max. monopulse energy	1.7mJ
Optical quality（M²）	＜1.6
Controlling power range（%）	10-100(The gradient is adjustable)
Repetition frequency（kHz）	20-200（The gradient is adjustable）
Fiber length	1.5m
Type of cooling	Air cooling

Get Price!

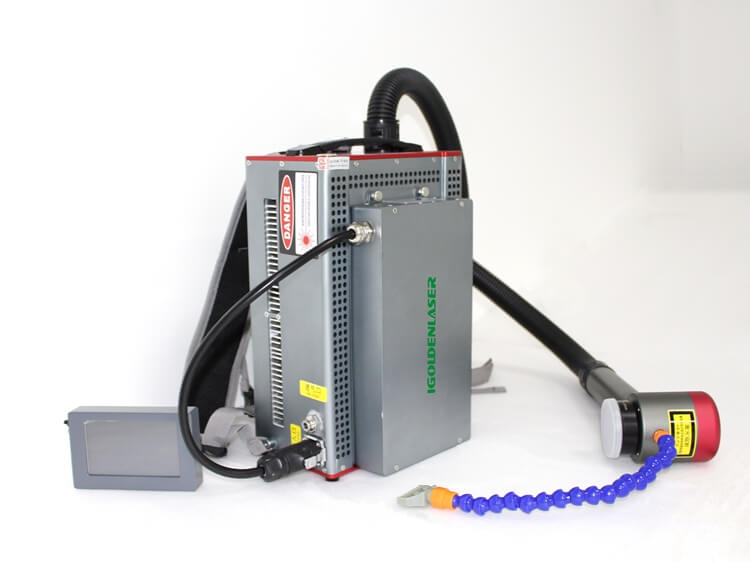

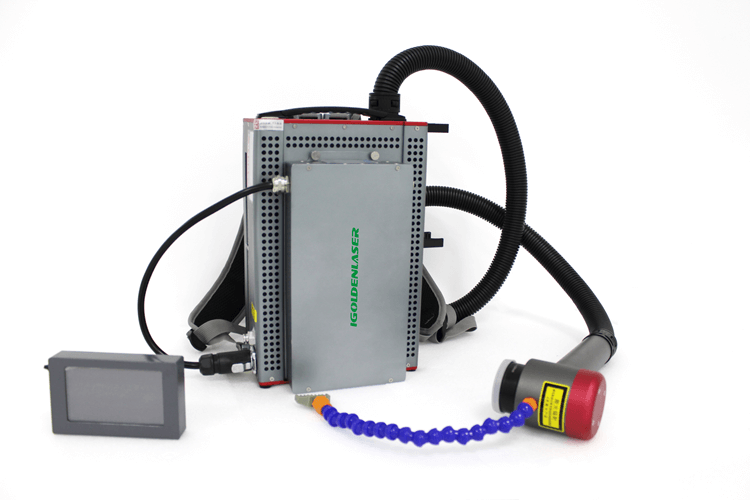

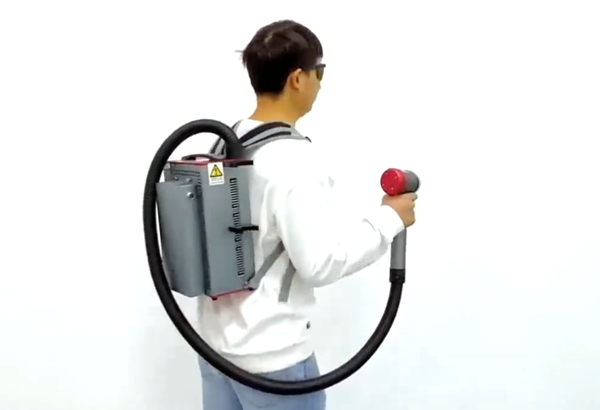

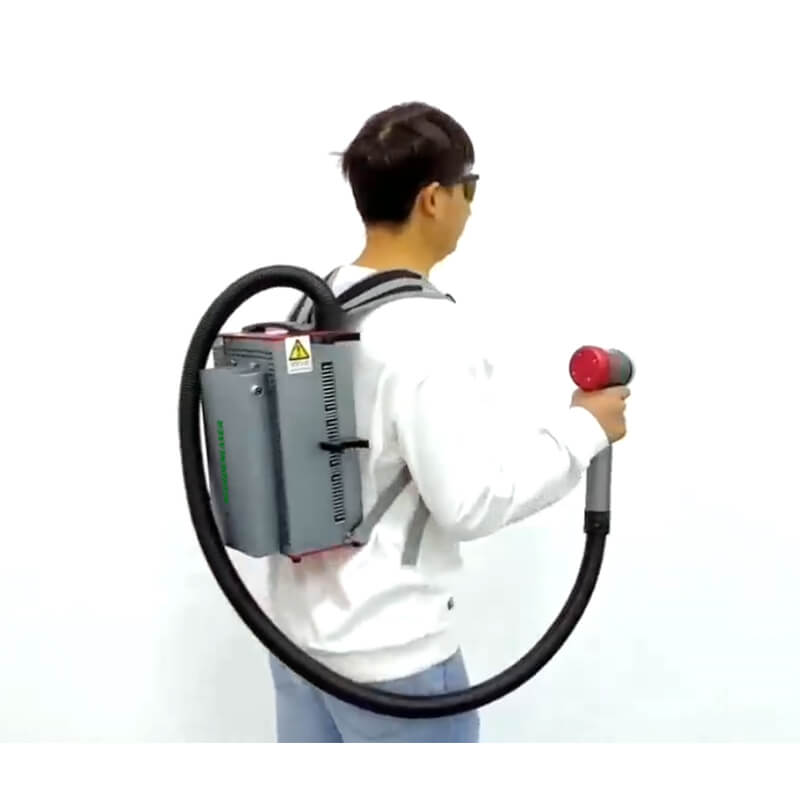

Portable integrated body

The chassis as a whole is small and beautiful, shoulder and back, portable and free hands, integrated design, compact, light weight, making it easier to carry.

External power battery

The product can be directly plugged into the use, but also can be connected to the external power battery, free use in the place without power supply equipment. Replaceable battery, can also be used while charging.

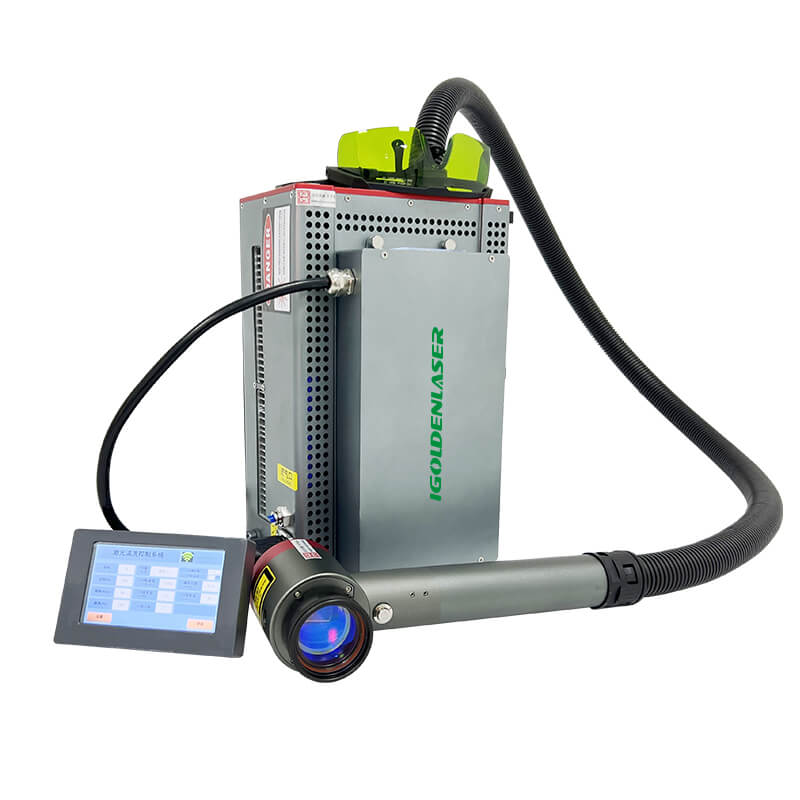

Hand-held cleaning head

Simple structure, light weight, simple operation, built-in imported high-speed scanning motor, small size, high precision, good stability.

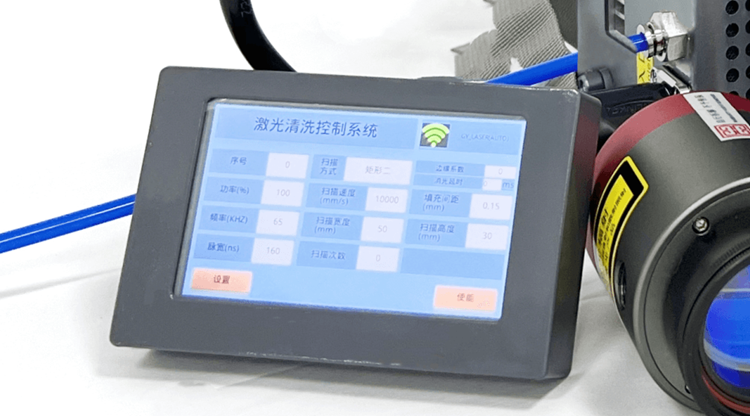

Wireless control panel

Wireless control screen design, clear and simple control interface, all parameters can be set and adjusted to achieve accurate position, accurate size selective cleaning.

Application of Fiber Laser Cutting Machine

Laser cleaning machines are widely used in mold cleaning, industrial rust removal, old paint and film removal, pre-welding pretreatment and post-welding treatment, degreasing of precision parts, decontamination and oxide layer removal of electronic components, cleaning of cultural relics, etc. Widely used in metallurgy, moulds, automobiles, hardware tools, transportation, construction appliances, machinery and other industries.

Contact Us Today to Get Price!

Laser Cleaning Machine Buyer Guide

What is a laser cleaning machine?

Laser cleaning machine is an automatic equipment that releases high-energy pulsed laser beam to irradiate and remove the rust, dust, contaminant, painting and oxide on the surface of the work piece. The principle of laser cleaning technology is that the contaminants on the surface of the work piece melt or evaporate instantly after being irradiated by the pulsed laser beam, so that the surface of the work piece becomes clean. Laser cleaning is efficient and eco-friendly. It is becoming more and more popular in various industries.

The efficient laser cleaning lies in the fiber laser generator which releases high-density fiber laser beam. Traditional industrial cleaning methods usually use chemical reagents or mechanical methods to remove the contaminants on the surface of the work piece. These methods have some disadvantages, such as low efficiency, damage the substrate or generate additional contaminants. Moreover, with the increasingly strict environmental protection laws, there are fewer chemicals that can be used in the industrial cleaning. Therefore, looking for an eco-friendly cleaning method is a major problem for many companies.

The table below is a comparison of various cleaning methods. Compared with the traditional mechanical cleaning method, chemical cleaning method and ultrasonic cleaning method, laser cleaning does not require any organic solvents and is pollution-free. The laser cleaning process has no noise and no damage to human body and environment.

How to use a laser cleaning machine?

Laser cleaning machine has the characteristics of non-contact, no thermal effect, no mechanical force on metal surface, no consumables and low processing cost. This machine has been widely used in many industries. So how to use a laser cleaning machine after you buy one? Here are the main steps for your reference. Please always remember that you need to read the operation brochure provided by the manufacturer to understand the precautions and operation instructions. Wear protective glasses and other protective equipment to ensure your safety. And do not look directly at the laser output position with you eyes during the cleaning. Check the machine parts and make sure nothing is damaged or missing, and no dust or dirt on the machine.

Check the power supply of the machine and make sure it is grounded.
After checking the machine, insert the plug into the power socket. Turn on power switch and set parameters on the control panel.
Take out the cleaning gun and open the cover, aim the gun head at the work piece that you need to clean and start your cleaning work.
After the cleaning process, release the gun button, turn off the laser switch, turn off the power, insert the cleaning gun back into the storage box, and then unplug the power plug.
If you encounter any problems during the operation, please seek help from after-sales engineer and do not disassemble the machine by yourself. Unauthorized disassembly and assembly may damage the machine or bring danger to the operator.

How to buy a laser cleaning machine?

More and more companies and individuals want to buy a laser cleaning machine to support their business. How to buy a suitable laser cleaning machine that fits your needs? You can follow the below three steps.

First of all, contact with a qualified manufacturer that has profound experience in the manufacturing of laser cleaning machines. A reliable manufacturer not only produces high quality laser cleaning machines, but also provides you complete machine data and thoughtful after-sales service. Before you buy a machine, it is essential to inspect the factory and check the real cleaning effect of the machine.
In addition, check the machine’s appearance. The design, structure and manufacturing process can almost directly determine the quality of the machine. The design style of each manufacturer is different. A manufacturer that has mature production technology always continuously improve the machine’s appearanceand structure under the premise of ensuring quality.
Choose the machine according to your needs and budget. Tell the salesperson about your cleaning requirements and budget plan, and they will recommend the suitable machine and configure the parameters, machine size and parts. Let the salesperson know your detailed processing requirement (processing materials, cleaning speed, etc.) so that you can get a most cost-effective laser cleaning machine.
