Best 4×8 Plasma Table with Cheapest Price for Sale

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

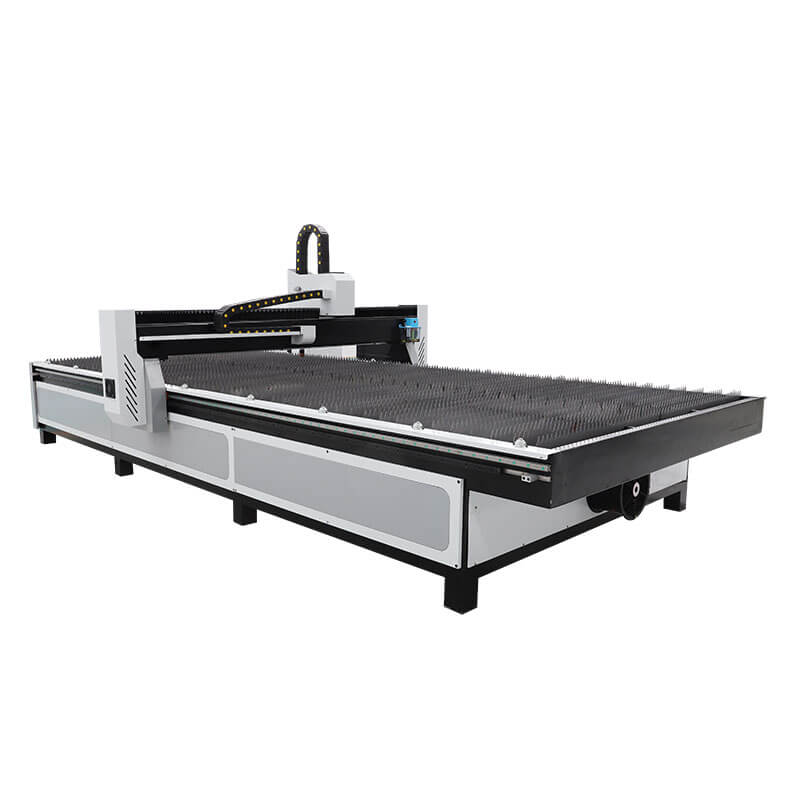

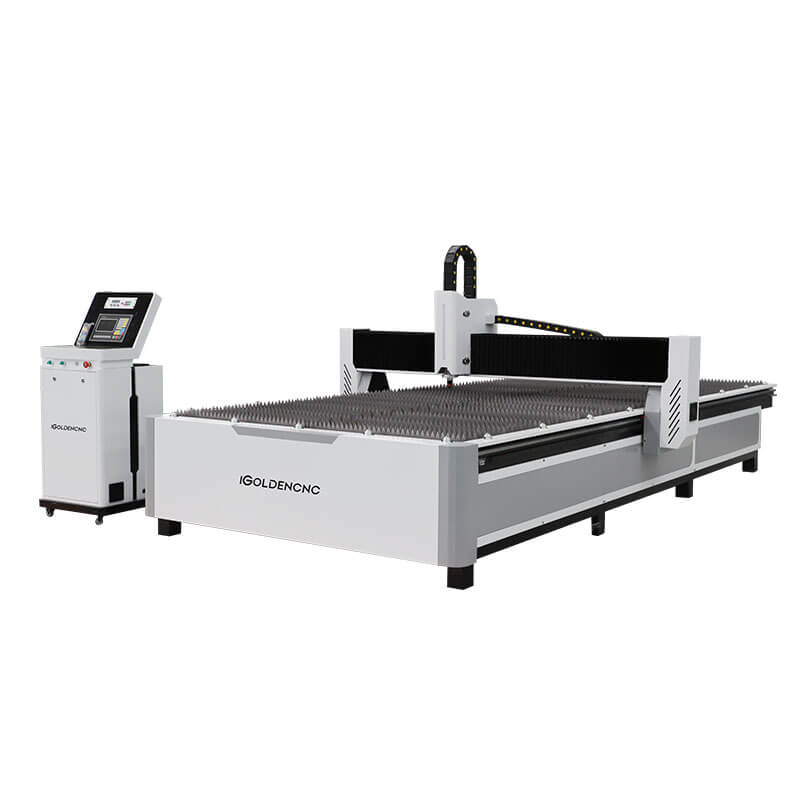

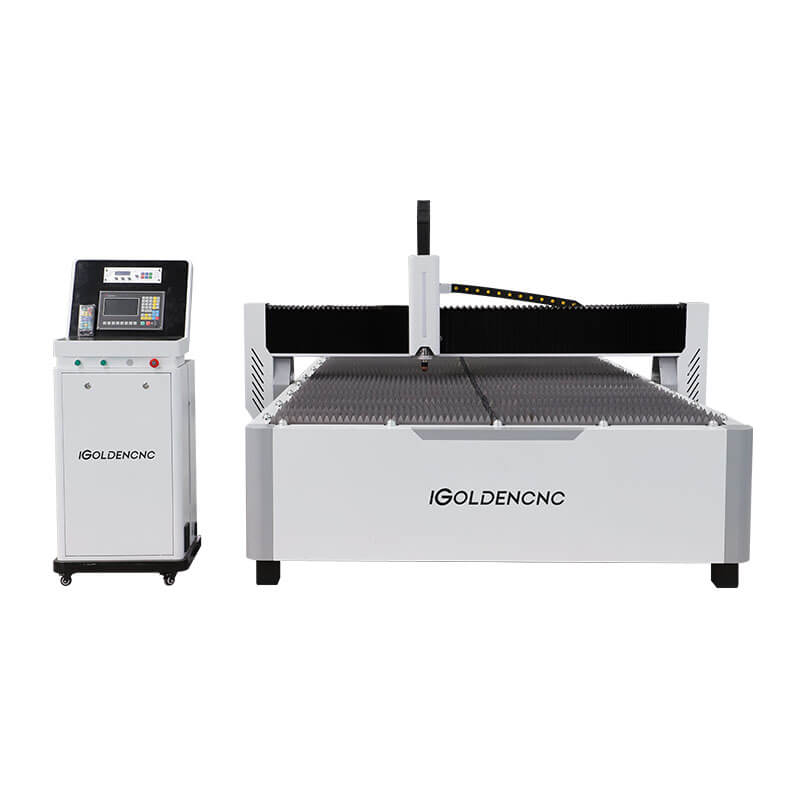

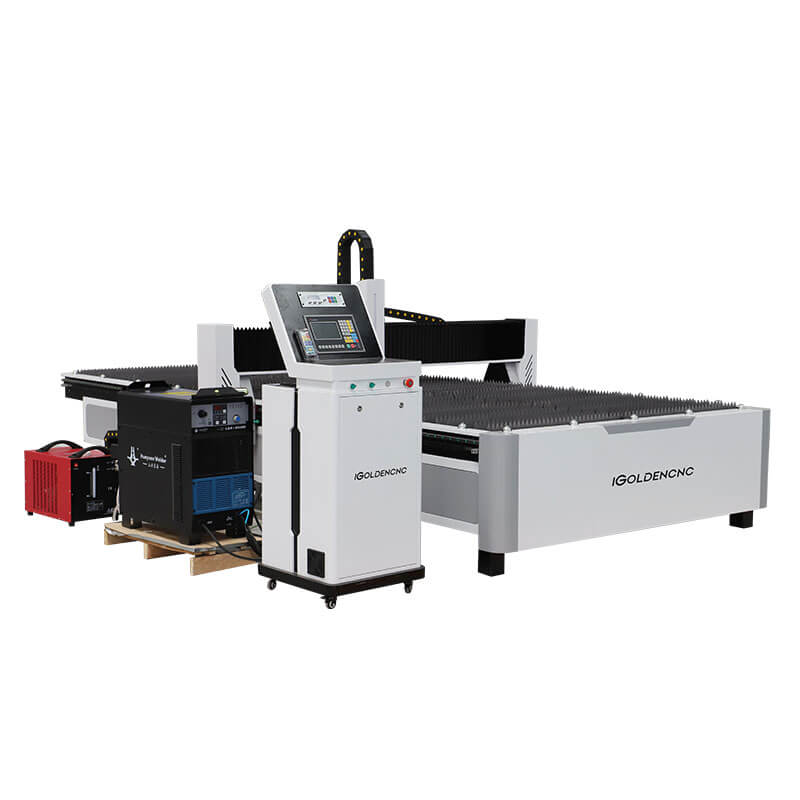

This is a 4×8 CNC plasma table cutter,it is very popular in the metal process industry.The 4×8 plasma table cutter has many advanced CNC plasma parts.Such as the high precision plasma cutting head, which has high precision cutting performance and cutting speed. And The aluminum profile gantry beam of this machine is a light duty and fast speed.

Send Inquiry Chat Now

Category: Plasma Cutting Machine Tags: 4x8 Plasma Table, cnc plasma table, plasma cutter

Description
Reviews (1)

iGP-3A

Affordable Price 4×8 CNC Plasma Cutter Table for Sale

The working area of this CNC plasma cutter 4×8 machine is 1300*2500mm. And this machine frame is welded by steel pipes, so the stability of the machine is very high. The controller system of this starfire controller, this machine can process almost any metals, such as the steel,aluminum,copper,stainless steel.This 4×8 plasma table cutter also has the advantages of fast cutting speed, smooth cut surface, little heat distortion & deformation.

The cnc plasma cutting table is characterized with highly automatic, easy to use, highly accurate, reliable quality, easy to maintain, etc. The cnc plasma cutting table is widely used for advertising industry, metal gate/door/window production, metal furniture, decoration industry, etc.

Cnc Plasma Cutter Table Advantage

1) Precise DC servo motors drive rack and pinion gears at variable speeds to provide accurate motion in any direction.

2) The unique, patented Z-axis controls the height of the torch, avoiding constant operator intervention and tip hangup common in other machines.

3)For superior accuracy, the gantry is synchronously driven at both ends.

4)Moving parts are rigid yet lightweight, allowing high acceleration and precise cutting at various speeds.

5)Unique controller bridges the gap between software and cutting table, letting you to see on screen what the machine is doing. This link allows flexibility, since parts are cut directly from drawings without the extra step of posting a program.

CNC Plasma Table Technical Parameter

Model	iGP-3A-1325
Working area	13002500mm,15003000mm
Machine body	Thickened Square Tube Welding Body
Worktable	Sawtooth
Reducer	Japan SHIMPO
Control System	STARFIRE with THC
Plasma Power	HUAYUAN
Lubrication	Automatic
Transmission	X,Y-helical rack pinion, Z ball screw
Guide rail	Taiwan Hiwin guide rail
Drive system	Leadshine servo motor and drivers
Power	63A/ 100A/120A/160A/200A
Cutting Torch Path	≤200mm
Positioning Accuracy	0.2mm
Working Voltage	380V/50Hz
Dimensions	369422901533mm
Package size	390022702050mm

It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.

Get Price!

CNC Plasma Cutting Head

Plasma cutting head is a component of a CNC plasma cutting machine that is responsible for cutting materials with precision and accuracy. CNC plasma cutting is a manufacturing process that uses a high-velocity jet of ionized gas (plasma) to cut through electrically conductive materials such as steel, aluminum, copper, and other metals.

STARFIRE Control System Of 4×8 Plasma Table

This is the starfire control system,this controller has highly reliable design and it has the ability to resist plasma interference, lightning strikes, and surges.This controller has practical flame/plasma cutting process, during plasma processing, the corner speed control and height controller control are automatically completed;

Chinese Huayuan Power Source

This is the Chinese Huayuan power source,it has high load duration and capable of adapting to wide power grid voltage,so it is very suitable for heavy industry.The huayuan power source has Scientific dust-proof design, high reliability of the whole machine.

Saw blade working table

These tables are designed to provide a stable and safe platform for cutting wood, metal, plastic, or other materials with a saw blade.

Application of CNC Plasma Table

Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.

Metal Cutting Materials

All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.

Contact Us Today to Get Price!

CNC Plasma Cutting Machine Buyer Guide

What Is A CNC Plasma Table?

CNC plasma table is a kind of plasma CNC cutting machine with customized welding table top, which can well adapt to cutting metal projects of different sizes. There are slide rails on both sides of the worktable frame, and the cutting mounting seat of the CNC plasma table is slidably connected with the two slide rails above the worktable frame.

The cutting mounting seat is slidably connected with the cutting part. The workbench frame of the CNC plasma table comprises a water tank and a plurality of support columns, flanges are fixed on both sides of the water tank, and a pressing structure is installed at the flange.

The pressing structure of the CNC plasma table comprises a pressing plate arranged above the support column and a pressing component connected with the flange position. The pressing assembly of CNC plasma tables include a rotating screw rod connected with the flange and a pressing ring connected with the screw rod thread. The screw rod passes through the overpressure tightening plate, and the pressing plate is located on the lead screw below the pressing ring. A pressing mechanism is arranged on the workbench frame of the CNC plasma tables. After the plate is placed on the workbench, rotate the pressing ring to make the pressing plate press the plate on the workbench of CNC plasma tables, which can flatten the plate with poor flatness and easy curl, save the labor of sheet metal processing, and make the cutting more convenient and safer.

How Many Types of CNC Plasma Tables?

The most common types of CNC plasma cutting tables include 4×4, 4×8, 5×10 and 6×12 in feet, some user may call the series CNC tables as 48″ x 48″ types, 48″ x 96″ types, 60″ x 120″ types in inches, some user may call the table kits as 1212 types, 1325 types, 1530 types, 2040 types in millimeter (mm).

CNC Plasma Table Advantage

1、The cnc plasma table for sale Easy to learn, easy Interface

Graphics through conversion software to create feeding trajectory, identify inside and outside cutting automatically. Creating lead in and out line automatically. Reasonable sorting, inner hole is in advance. single graphics cutting first，can use unbind graphics for special cutting.

Strip cutting，reduce the thermal deformation efficiently. Can support type3、Master cam、CAXA、Inte GNPS、Artcut.etc. software .

2、The cnc plasma table for sale Easy operation, easy maintenance Perfect interface with English display. Easy keyboard for quick operation and recognize.

3、The cnc plasma table for sale Inexpensive and compact structure A reasonable space-saving arrangement and strong compact design makes the machine run more smoothly and cutting quality assurance.

4、The cnc plasma table for sale Increase anti-jamming processing and to avoid the failure rate mostly.

5、 This The cnc plasma table for sale can achieve change cutting torch P80 to P40. thin plate will use P40 and the plate will not deformation. thick plate will use P80 to non-contact cutting.

6、 Fast speed, high accuracy

What Are The Types of Plasma Cutters?

The most common types of plasma cutters include the handheld and CNC variant (hobby types and industrial types). The most common power supplies include Huayuan power supply and Hypertherm power supply.

According to the working methods, the kits can be divided into air kits, dry kits, semi-dry kits and underwater kits.

According to the cutting quality and precision, you will meet the types of ordinary, fine, laser-like, and so on.

According to the appearances, the three types are listed bellow:

Portable CNC Kits

The machine is portable, easy to setup, compact in structure, small in space and low in manufacturing cost. However, due to the limitation of the cantilever structure, the stress conditions are poor, the transverse deformation is prone to occur, the transverse cutting width is limited, and the rigidity is poor during high-speed machining.

Gantry CNC Kits

The gantry-type supporting method is bidirectionally supported, the force is more uniform, the equipment has good rigidity, and can achieve a large lateral span, usually up to 3 to 10m. However, the equipment installation requirements are high, the structure is relatively large, and it takes up more plant area. The driving mode is divided into unilateral driving and bilateral driving. Unilateral drive and bilateral drive each have their own characteristics and applications. The unilateral drive avoids the high-precision synchronous control and complicated structure of the bilateral drive. However, due to the offset of the center of mass and the driving force does not pass through the center of mass, asymmetric inertial force will be generated during operation, which is prone to vibration, deformation and tilt. Therefore, it can only be used in a small span. The double-sided drive structure is relatively complicated and requires high-precision synchronous control on both sides, which can be used for a larger span and more stable movement.

CNC Table Kits

The cutting part and the machine are integrated, which is convenient to move in place, but the movement range of the cutting torch is relatively small, and the cutting width is subject to certain restrictions.

Production Facility

International Shipping Around the World

The plasma cutting machines provided by our company include flat plasma cutting machine, plate and tube integrated plasma cutting machine, square tube plasma cutting machine, portable plasma cutting machine, round tube plasma cutting machine, gantry plasma cutting machine.

Do you have a thought to DIY or buy an affordable CNC Plasma Cutter? We’ll provide you with the competitive CNC Plasma Table with expert customer service to satisfied your requirements.
