CNC Big Laser Cutting Machine

Posted on by igoldencnc laser

CNC big laser cutting machine, also known as a CNC laser cutter, is a large-scale industrial machine used for precise and efficient laser cutting operations on various materials. These machines are commonly found in industries such as manufacturing, automotive, aerospace, and metal fabrication, where high-volume or large-scale cutting tasks are required.

big laser cutting machine

Big Laser Cutting Machine

Big laser cutting machines use powerful lasers, such as CO2 lasers or fiber lasers, capable of cutting through thick materials efficiently.

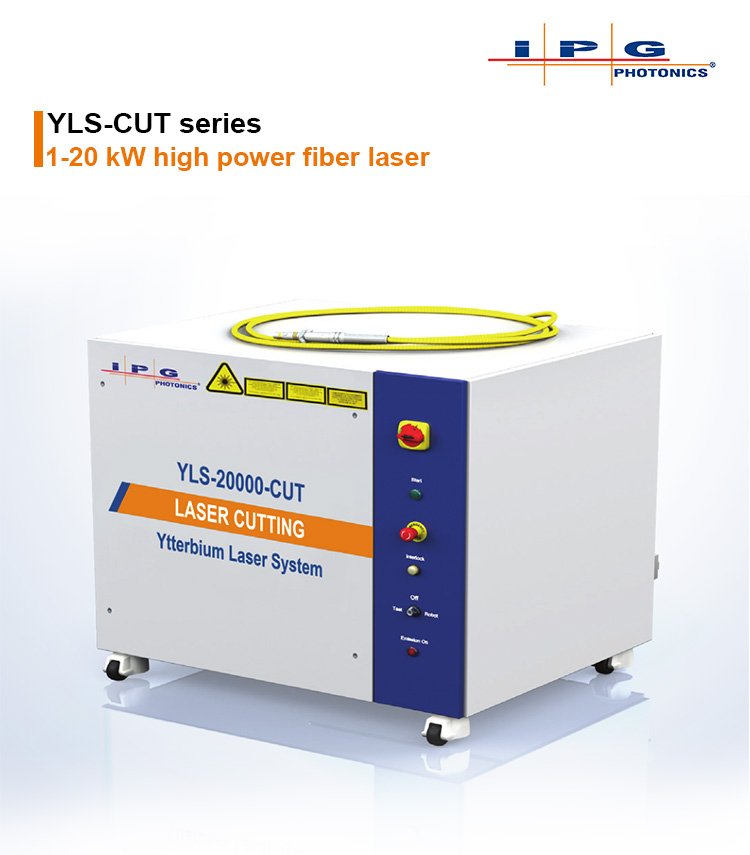

20000w laser souce

One of the distinguishing features of a CNC big laser cutting machine is its large cutting bed. These machines can have cutting beds that range from several feet to tens of feet in width and length, allowing for the processing of large sheets or panels of material. The size of the cutting bed determines the maximum dimensions of the workpieces that can be accommodated.

laser cutting and engraving machine

Big laser cutting machines can cut a variety of materials, including metals (such as steel, stainless steel, aluminum), plastics, wood, composites, and more. The compatibility depends on the type of laser used. For example, fiber lasers are commonly used for metal cutting, while CO2 lasers are versatile and suitable for both metal and non-metal materials.

CNC Big Laser Cutting Machine

CNC big laser cutting machines often come with additional features to enhance performance and productivity. These can include automatic material handling systems, rotary attachments for cylindrical objects, integrated fume extraction systems, and advanced nesting software to optimize material utilization.They often work with CAD/CAM software to create and process cutting designs, allowing for customization and complex cutting operations.

Some models come with automation features such as material handling systems, robotic arms, or CNC controls for increased efficiency and productivity.

Ipg Cutting Parameters

IPG YLS 10000W切割参数
材料种类
Material		 厚度
Thickness		 气体种类
Assisted Gas		 速度（M/MIN)
Max Speed
碳钢
Carbon stell		 0.5 氮气
Nitrogen		 80.0-100.0
1.O 60.0-70.0
2.O 氧气
Oxygen		 7.0-7.5
3.O 5.0-5.5
4.O 4.0-4.5
5.O 3.6-4.0
6.O 3.3-3.7
8.O 2.5-2.8
10.O 2.3-2.6
12.O 1.9-2.2
16.O 1.3-1.5
20.O 1.1-1.2
22.O 0.9-1.0
25.O 0.6-0.9
30.O 0.4-0.7
不锈钢
Stainles sstell		 0.5 氮气
Nitrogen		 80.0-100.0
1.O 68.0-72.0
2.O 42.0-46.0
3.O 27.0-30.0
4.O 18.0-21.0
5.O 14.0-16.0
6.O 10.0-10.5
8.O 6.5-6.8
10.O 4.7-5.0
12.O 2.8-3.0
14.O 2.2-2.4
16.O 2.0-2.2
20.O 1.2-1.3
25.O 0.7-0.8
30.O 0.5
黄铜
Brass		 1.O 50.0-62.0
2.O 30.0-35.0
3.O 15.0-21.0
4.O 11.0-13.0
5.O 8.0-11.0
6.O 5.0-7.5
8.O 3.0-4.5
10.O 2.0-2.5
12.O 1.1-2.0
15.O 0.8-1.2
紫铜
Copper		 1.O 氧气
Oxygen		 30.0-40.0
2.O 9.0-11.0
3.O 3.0-4.0
4.O 1.2-2.0
6.O 0.8-1.3
8.O 0.6-1.0
铝合金
Aluminum		 1.O 氮气
Nitrogen		 55.0-70.0
2.O 33.0-42.0
3.O 18.0-26.0
4.O 15.0-18.0
5.O 11.0-15.0
6.O 9.0-11.0
8.O 4.0-6.0
10.O 2.5-3.5
12.O 1.5-2.0
14.O 1.0-1.5
16.O 0.7-1.0
20.O 0.5-0.8
25.O 0.5-0.7
30.O 0.3-0.5
35.O 0.3
IPG YLS 12000W切割参数
材料种类
Material		 厚度
Thickness		 气体种类
Assisted Gas		 速度（M/MIN)
Max Speed
碳钢
Carbon stell		 0.5 氮气
Nitrogen		 80.0-100.0
1.O 66.0-80.0
2.O 氧气
Oxygen		 7.2-7.8
3.O 5.2-5.8
4.O 4.2-4.6
5.O 3.8-4.2
6.O 3.5-4.0
8.O 2.8-3.3
10.O 2.5-3.0
12.O 2.0-2.3
16.O 1.4-1.6
20.O 1.1-1.4
22.O 0.9-1.2
25.O 0.6-0.9
30.O 0.5-0.8
40.O 0.4-0.7
50.O 0.3-0.6
不锈钢
Stainles sstell		 0.5 氮气
Nitrogen		 80.0-100.0
1.O 70.0-80.0
2.O 44.0-48.0
3.O 28.0-35.0
4.O 20.0-26.0
5.O 15.0-20.0
6.O 11.0-13.0
8.O 7.0-7.5
10.O 5.0-5.5
12.O 3.0-3.5
14.O 2.3-2.8
16.O 2.1-2.5
20.O 1.4-1.7
25.O 0.7-1.0
30.O 0.5-0.7
35.O 0.4-0.5
40.O 0.3
50.O 0.3
黄铜
Brass		 1.O 55.0-65.0
2.O 32.0-40.0
3.O 16.0-22.0
4.O 12.0-15.0
5.O 10.0-14.0
6.O 8.0-13.0
8.O 5.5-6.5
10.O 3.5-4.7
12.O 1.7-2.8
15.O 1.0-1.6
18.O 0.6-0.8
20.O 0.6-0.8
紫铜
Copper		 1.O 氧气
Oxygen		 30.0-40.0
2.O 9.0-11.0
3.O 3.0-4.0
4.O 1.2-2.0
6.O 0.8-1.3
8.O 0.6-1.0
铝合金
Aluminum		 1.O 氮气
Nitrogen		 60.0-80.0
2.O 35.0-45.0
3.O 22.0-35.0
4.O 17.0-24.0
5.O 14.0-20.0
6.O 12.0-17.0
8.O 9.0-11.0
10.O 3.5-4.5
12.O 2.0-3.0
14.O 1.5-1.8
16.O 1.1-1.4
20.O 1.0-1.2
25.O 0.7-1.0
30.O 0.5-0.7
35.O 0.4-0.5
40.O 0.3
50.O 0.2
IPG YLS 15000W切割参数
材料种类
Material		 厚度
Thickness		 气体种类
Assisted Gas		 速度（M/MIN)
Max Speed
碳钢
Carbon stell		 0.5 氮气
Nitrogen		 130.0-150.0
1.O 96.0-100.0
2.O 氧气
Oxygen		 7.8-8.5
3.O 5.8-6.3
4.O 4.8-5.5
5.O 4.3-4.8
6.O 4.0-4.5
8.O 3.0-3.6
10.O 2.8-3.2
12.O 2.7-3.2
16.O 1.9-2.3
20.O 1.5-1.7
22.O 1.1-1.3
25.O 1.2-1.5
30.O 0.8-1.2
40.O 0.7-0.9
50.O 0.6-0.8
60.O 0.2-0.5
不锈钢
Stainles sstell		 0.5 氮气
Nitrogen		 80.0-100.0
1.O 75.0-90.0
2.O 46.0-50.0
3.O 30.0-38.0
4.O 22.0-28.0
5.O 16.0-22.0
6.O 12.0-15.0
8.O 7.5-8.5
10.O 5.5-6.5
12.O 3.3-4.0
14.O 2.5-3.0
16.O 2.3-2.8
20.O 1.5-1.9
25.O 0.9-1.2
30.O 0.6-0.8
35.O 0.5
40.O 0.3
50.O 0.3
60.O 0.2
黄铜
Brass		 1.O 60.0-75.0
2.O 35.0-45.0
3.O 18.0-25.0
4.O 14.0-18.0
5.O 12.0-16.0
6.O 10.0-13.0
8.O 7.0-8.5
10.O 5.0-6.5
12.O 2.0-3.5
15.O 1.5-2.2
18.O 0.8-1.2
20.O 0.5-0.8
25.O 0.4-0.7
30.O 0.3-0.6
紫铜
Copper		 1.O 氧气
Oxygen		 30.0-40.0
2.O 9.0-11.0
3.O 3.0-4.0
4.O 1.2-2.0
6.O 0.8-1.3
8.O 0.6-1.0
铝合金
Aluminum		 1.O 氮气
Nitrogen		 65.0-85.0
2.O 38.0-50.0
3.O 25.0-38.0
4.O 20.0-26.0
5.O 17.0-22.0
6.O 14.0-18.0
8.O 11.0-15.0
10.O 4.0-5.0
12.O 2.3-3.2
14.O 1.7-2.1
16.O 1.3-1.6
20.O 1.1-1.4
25.O 1.0-1.2
30.O 0.6-0.8
35.O 0.5-0.6
40.O 0.4-0.5
50.O 0.3
55.O 0.3
60 0.2
IPG YLS 20000W切割参数
材料种类
Material		 厚度
Thickness		 气体种类
Assisted Gas		 速度（M/MIN)
Max Speed
碳钢
Carbon stell		 0.5 氮气
Nitrogen		 80.0-100.0
1.O 70.0-90.0
2.O 氧气
Oxygen		 7.5-8.2
3.O 5.52-6.0
4.O 4.5-5.2
5.O 4.0-4.5
6.O 3.8-4.3
8.O 2.8-3.5
10.O 2.6-3.0
12.O 2.5-3.0
16.O 1.7-2.0
20.O 1.3-1.5
22.O 1.1-1.3
25.O 1.0-1.3
30.O 0.8-1.2
40.O 0.7-0.9
50.O 0.6-0.8
60.O 0.4-0.7
70.O 0.2-0.5
不锈钢
Stainles sstell		 0.5 氮气
Nitrogen		 80.0-100.0
1.O 50.0-60.0
2.O 35.0-40.0
3.O 30.0-35.0
4.O 30.0-32.0
5.O 24.0-28.0
6.O 23.0-25.0
8.O 14.0-17.0
10.O 10.0-13.0
12.O 9.0-10.0
14.O 7.0-8.5
16.O 5.0-6.0
20.O 2.5-3.0
25.O 1.4-1.8
30.O 0.9-1.2
35.O 0.25-0.85
40.O 0.18-0.5
50.O 0.15-0.2
60.O 0.1-0.12
70.O 0.08-0.1
80.O 0.05-0.06
90.O 0.01-0.05
100.O 0.02-0.03
黄铜
Brass		 1.O 90.0-100.0
2.O 55.0-65.0
3.O 38.0-45.0
4.O 35.0-39.0
5.O 32.0-35.0
6.O 29.0-32.0
8.O 25.0-28.0
10.O 22.0-25.0
12.O 19.0-23.0
15.O 1.8-2.0
18.O 0.8-1.3
20.O 1.3-1.5
30.O 1.2-1.5
40.O 1.0-1.2
50.O 0.5-0.9
60.O 0.13-0.17
70.O 0.1-0.13
铝合金
Aluminum		 1.O 氮气
Nitrogen		 50.0-60.0
2.O 38.0-50.0
3.O 25.0-38.0
4.O 20.0-26.0
5.O 17.0-22.0
6.O 14.0-18.0
8.O 11.0-15.0
10.O 4.0-5.0
12.O 2.3-3.2
14.O 1.7-2.1
16.O 1.3-1.6
20.O 1.1-1.4
25.O 1.0-1.2
30.O 0.6-0.8
35.O 0.5-0.6
40.O 0.4-0.5
50.O 0.3-0.5
60.O 0.15-0.2
70.O 0.08-0.13
80.O 0.06-0.08

Big Fiber Laser Cutting Machine

High-power fiber laser cutting machine is a high-power, efficient, and high-precision cutting equipment. It is typically equipped with high output powers of 10 kW, 12 kW, 12 kW 15KW 20000w and above. The high-power laser beam can be focused into a very small spot, allowing for rapid and precise cutting by quickly heating and melting or evaporating the material. In addition, the iGR-PH series is equipped with a fully enclosed protective cover and an automatic exchange platform, ensuring safe and environmentally friendly operation while significantly improving cutting efficiency.

Fiber Cutting Machine for Metal Sheet and Pipe

P series laser cutting machine adopts fully enclosed laser shield and high-speed exchange platform to achieve safe, environmental protection and efficient production. It is a high-end dedicated equipment for laser cutting of sheet metal, and is the first choice of modern manufacturing enterprises.

Industry applications: sheet metal industry, machinery industry, automobile industry, aerospace, cabinet industry, hardware industry, home appliances industry, doors and Windows industry, construction industry, mechanical and electrical industry, furniture industry; Multi-material application: stainless steel, carbon steel, galvanized plate, electrolytic plate, aluminum, titanium, alloy, brass, copper, iron and other rare metal plate.

Fiber Laser Cutting Machine Key Features

Fiber Laser Technology: The machine incorporates state-of-the-art fiber laser technology, ensuring superior cutting quality and efficiency. This technology is known for its speed, precision, and ability to handle a wide range of materials.

Exchange Table Design: One of the standout features is the exchange table design. This allows for continuous operation as one table can be loaded or unloaded while the other is in use. This significantly reduces downtime and enhances overall productivity.

High Cutting Speed: The Exchange Table Fiber Laser Cutting Machine boasts impressive cutting speeds, making it suitable for various industrial applications. Whether it’s thin sheets or thicker materials, the machine can deliver quick and precise cuts.

Versatility in Material Compatibility: From metals like steel and aluminum to non-metallic materials such as plastics and composites, this laser cutting machine is designed to handle a diverse range of materials. It’s a versatile solution for industries with varied material processing needs.

Accuracy and Precision: Precision is paramount in industrial cutting processes, and this machine excels in delivering accurate cuts with minimal error margins. This is crucial for applications where intricate designs and tight tolerances are required.

User-Friendly Interface: The machine features an intuitive and user-friendly interface, making it accessible for operators with varying levels of expertise. The control panel allows for easy programming and adjustments, contributing to a smoother workflow.

Safety Measures: Safety is prioritized with built-in features such as laser beam guarding, emergency stop mechanisms, and compliance with industry safety standards. This ensures a secure working environment for operators.

Customizable Options: The Exchange Table Fiber Laser Cutting Machine often comes with customizable options to meet specific industry requirements. Whether it’s laser power, table size, or additional features, the machine can be tailored to suit diverse production needs.
