Double heads oscillating knife cutting machine

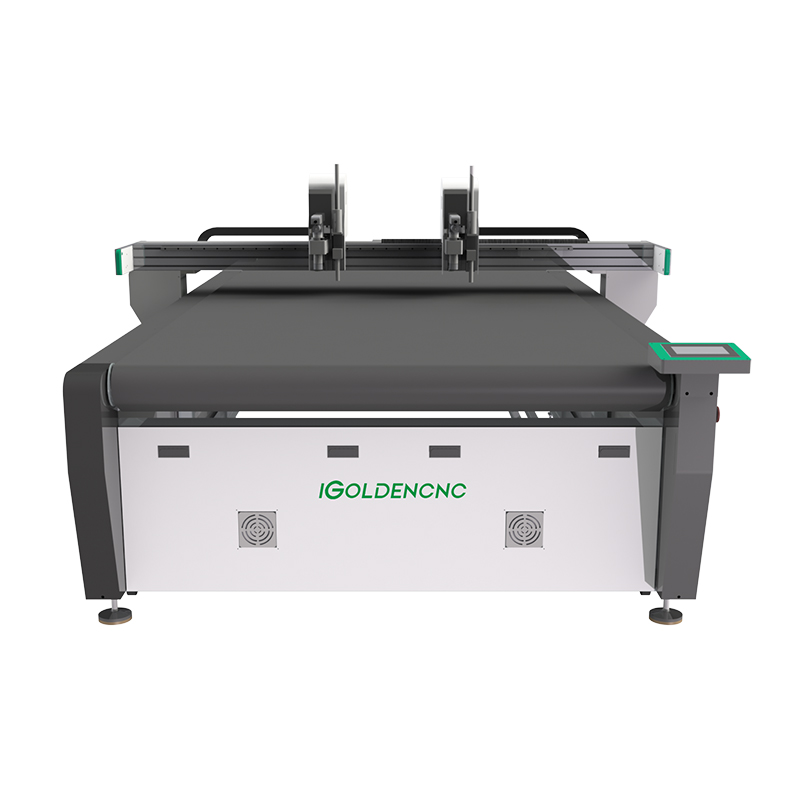

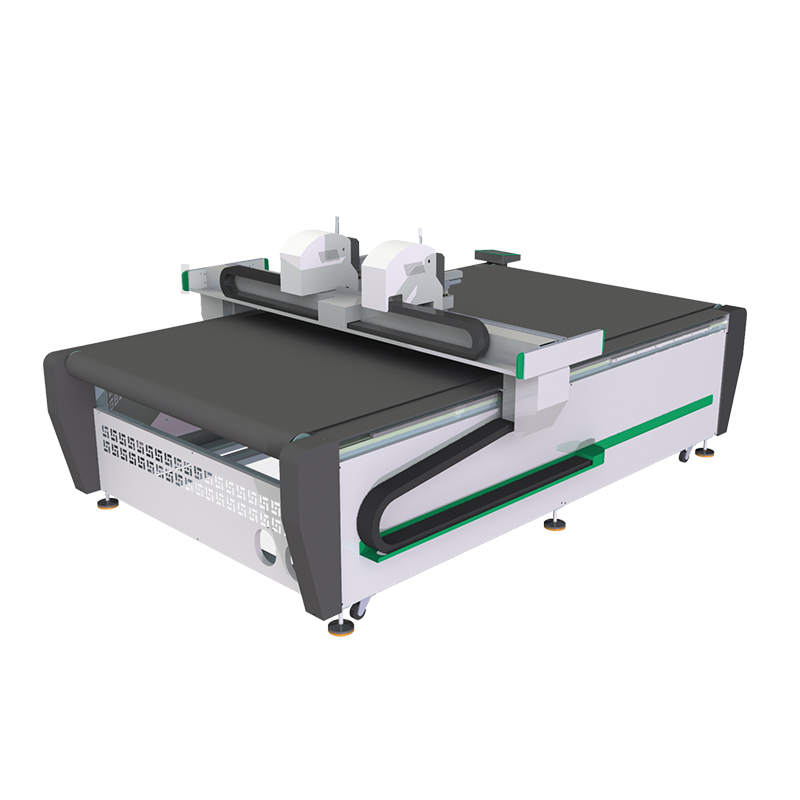

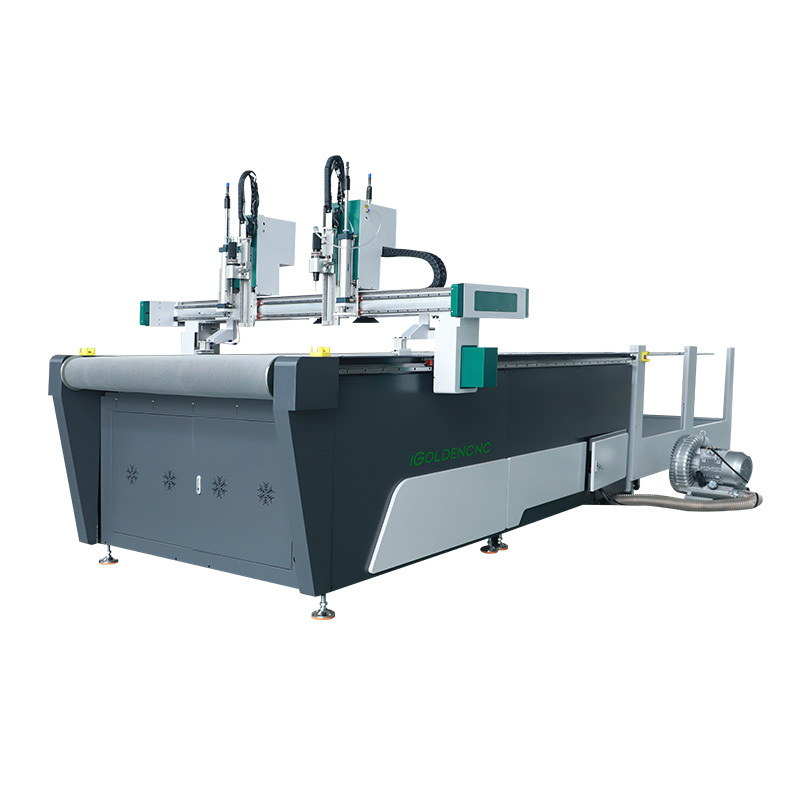

Double Head Oscillating Knife Cutting Machine

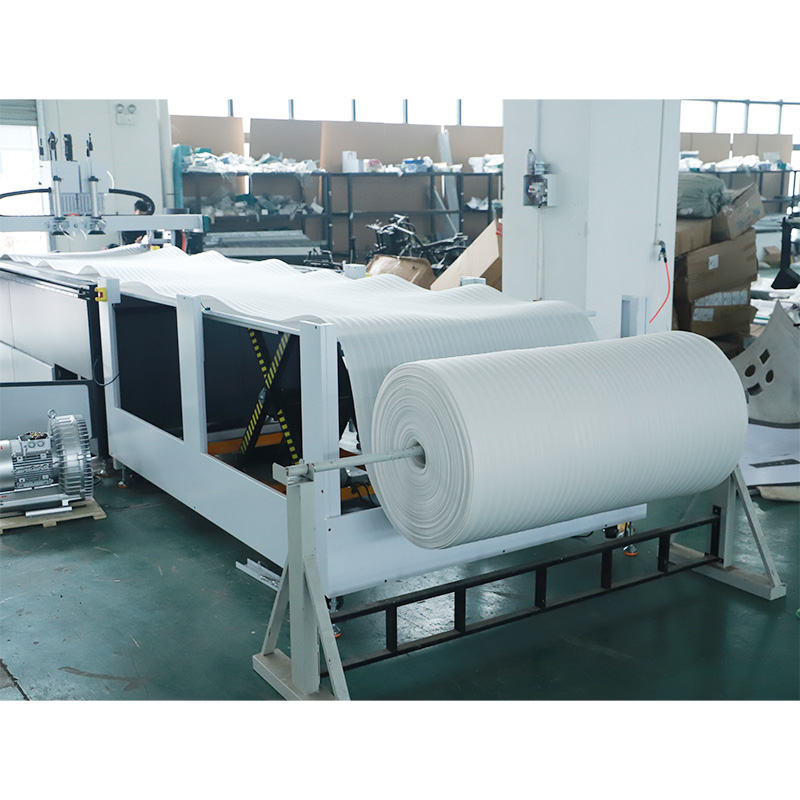

Automatic feeding fabric fur oscillation knife cutting machine with 2 head tools and automatic feeding system for fabric loading, automatic typesetting, automatic counting and other functions,no deformation, no need to knife Mold,highly improve the processing efficiency.

Two heads be with same oscillation cutting tool, and they can work at the same time and do the same work. Working area size of each head is a half of the total table size.

Send Inquiry Chat Now

Category: CNC Oscillating Knife

Description
Reviews (0)

IGK-1625/1630

Oscillating Knife Cutting Machine

Double Heads Oscillating Knife Cutting Machine is an advanced machine , which is easy to operate and the intelligent LED touch screen control panel can achieve a variety of parameters set and adjusted. It’s equipped with 2 multifunctional cutting heads, which greatly improves production efficiency. The automatic feeding device for continuous feeding, long cutting across the width, and unlimited theoretical cutting length make it possible to meet the needs of cutting cloth material of different widths. The intelligent safety anti-collision protection device and infrared safety blocking device ensure maximum protection for the operator when the machine is running at high speed.

Using cnc knife cutting technology, our digital cutter machine has no burning and totally environmently. It’s equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers’ different requirements.

The heavy duty drag knife tool is available for special materials of the sign making industry. Oscillating knife cutting machine cutting materials as follows:corrugated cardboard,grey cardboard,coated paper, PVC, PET,PP, acrylic,glass fabric,leather, eva foam,rubber, etc.

Features of CNC Oscillating Knife Cutter

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

2. The high precision CNC oscillating knife cutter can induce draft separately and easily cut small pieces.

3. The anti-collision and the built in autosensing device ensure the security of CNC oscillating knife cutter.

4. High efficiency can be realized without making a high-cost knife model.

5. The high precision CNC oscillating knife cutter is designed for production with small quantities and can save on costs while maintaining speed and accuracy.

6. The CNC machine cuts by knife, no burning, no pollution gases generated.

Dual Head Oscillating Knife Cutting Machine

CNC Knife Cutting Machine

Technical indicators	parameter
Model	iGK-VD1325（Size can be customized）
Working Size	1300（W）*1600mm（L）
Machine body	Welded high strength integrated bed
Platform	Aerospace aluminum vacuum adsorption platform
Platform adsorption material	4mm felt
Tool	Pneumatic knife *2
Tool rest	Double head intershift
Gantry feed height	15cm
Cutting thickness	0.1-40mm（The actual materials shall prevail）
Cutting accuracy	0.05mm（The actual materials shall prevail）
Operating system	Ruida
Vacuum pump	9KW vacuum pump
Drive part	Taiwan straight square rail and rack
Miscellaneous function	Cross red light location
Motor drive	Servo motor drive
Electric device	Chint/Omron
Voltage	AC220V/380V,50Hz
Weight	1500KG

Get Price!

Modular structure design of Oscillating Knife

Application of CNC Oscillating Knife Cutter

Used for cutting leather, gasket, PP, PE, EVA, PTFE, ETFE, carpet, carton, wood, MDF, PVC, acrylic, cardboard, rubber, corrugated carton, foam, leather, composite materials, cardboard, corrugated board, honeycomb paper, plastic film, fiber paper, plastic box, resilient glue, rubber cloth, etc.

> Widely used in sign graphics, digital printing, packaging, automobiles, cruise ships, exhibition tools, sign production, gasket materials, crafts and other industries.

Contact Us Today to Get Price!

CNC Oscillating Knife Cutter Buyer Guide

What Is Automatic Digital Cutting Machine (CNC Knife Cutter)?

Automatic digital cutting machine (also known as CNC knife cutter) is a type of automated precision cutting system with CNC (Computer Number Controlled) controller which is used for high-precision cuts of heavier flexible and semi-rigid materials. It works with the multi-tool blades consisting of vibration knife, oblique knife, circular knife, punching knife, milling knife, punch roller, or marking pen. CCD camera and projector are optional for more precise cuts. A automatic digital cutter is also known as digital cutting table, automatic flatbed cutter, cutting plotter, dieless cutter, flash cutter, CNC knife cutter, CNC drag knife, CNC tangential knife, CNC oscillating knife, automatic precision cutter, and CNC blade cutting table. A drag knife can be assembled on your CNC router or spindle collet to cut fabric, leather and vinyl.

How Many Types of Automatic Digital Cutters?

Digital cutting machines are divided into digital gasket cutter, carpet cutter, fabric cutter, leather cutting tool, cardboard cutter, foam cutting system, paper cutter, film cutting tool, vinyl cutter and fiberglass cutting system.

How Much is the Digital Cutting Machine Price?

The digital cutter price generally ranges from $5,000 to $32,000. And the cheapest digital cutter for sale is 1337 digital fabric cutting machine with the price of $5,000 to $8,000. While the most expensive flatbed digital cutter ATC CNC oscillating machine with the price of $27,000 to $32,000.

In addition, we support our customers to diy digital cutting machine or customize digital cutting machine themselves. But you should know that the bigger the size, the higher the digital cutting machine price; and the better the flatbed digital cutting parts, the higher the digital cutter cost.

For the most common digital cutting machines or the CNC digital cutters with the simplest configurations, the digital cutting machine cost ranges from $3,000 to $12,000. And for the high-end ATC CNC digital cutting machine, the price will reach to $27,000. For the most advanced 4 axis CNC digital cutter, the price will be more than $30,000.

What the Digital Cutting Machine can Do?

The finished product cut by the digital cutting machine has the characteristics of clean and tidy, smooth edges, accurate size of the cut pieces, no smell, and very environmental protection. In addition, this cutting method is not limited by the cutting pattern. With the function of automatic loading and unloading and intelligent typesetting, it can realize diversified cutting effects. Therefore, this oscillating machine is popular in all walks of life.

Especially in the advertising industry and clothing industry, this digital cutting machine is very popular. The digital cutting machines can mainly cut non-metallic materials such as leather, cloth, paper, and foam. Besides that, it also can do the processing of flexible materials such as car interiors and floor mats. The finished product is clean and neat, the edges are smooth, and the pieces are accurate, odorless, and environmentally friendly. Therefore, it is also the first choice for many companies

Production Facility

International Shipping Around the World

At IGOLDEN, we highly value customer feedback as it helps us to continuously improve and deliver exceptional products and services. We are always eager to hear from our customers and believe that such interactions are essential to our growth. We invite you to watch our video testimonials and witness the remarkable performance of our laser machines for yourself.

2023 top rated CNC oscillating knife cutter is a professional CNC digital cutting system for fiberglass, fabric, leather, cardboard, plastic, paper, rubber, cloth, foam, flexible polymer with hobby projects or industrial plans. Now the best CNC oscillating knife cutting machine for sale at affordable price.
