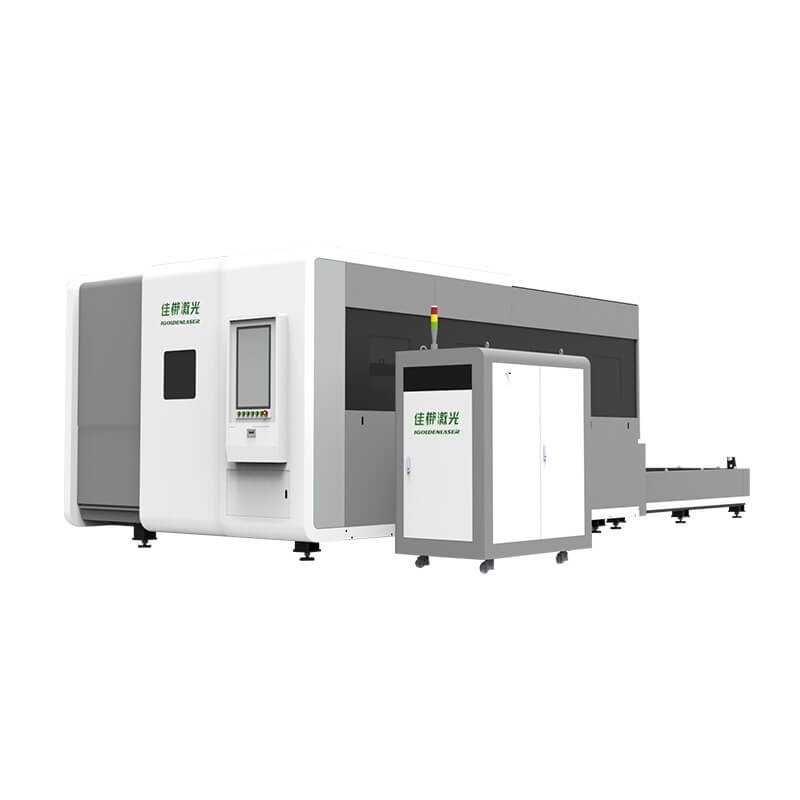

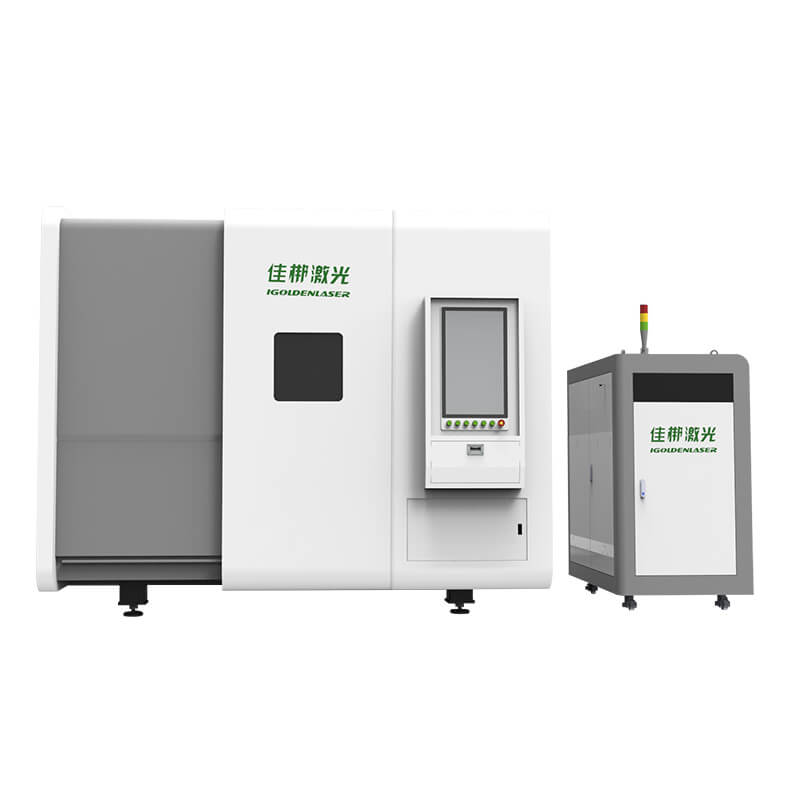

High Power Enclosed Fiber Laser Cutting Machine

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

The full-enclosed fiber cutting machine is equipped with a replacement table and a laser protective observation window. The protection design complies with the European CE safety production standards to ensure the safe operation of the equipment and the personal safety of the operators. Equipped with 1000w-6000w fiber laser, the standard working area is 1500*3000mm, which can be upgraded to 1500* 4500mm.

Send Inquiry Chat Now

Category: Laser Cutting Machine

Description
Reviews (1)

IGR-PH Series

Enclosed Fiber Laser Cutting Machine

The exchange platform fiber laser CNC sheet metal laser cutting machine adopts totally enclosed laser protective cover, ensuring the safe, stable, efficient and high-precision operation of the sheet metal cutting. Exchange platform helps improve production efficiency greatly.

Fiber laser cutter is a type of automatic industrial laser cutting system with 12000W laser generator and CNC controller for sheet metal fabrication with high speed and high precision. It is a high power laser cutting machine for thicker metal sheets, including carbon steel sheets, stainless steel sheets, aluminum sheets with the maximum thickness of 50mm, and the maximum cutting thickness of non-ferrous metal sheets (such as copper and titanium) is 20mm. The maximum cutting speed for thin metal sheets can be up to 80m/min.

All Cover Exchange Platform Laser Cutting Machine Advantages

1 .Fully protected laser glass cover to protect your eyes and make your operation safer.

2. The strong steel flat bed to keep the machine for 20 years without distortion.

3. World-class components like guide rails and racks to guarantee the cutting accuracy.

4. Simple operating system, to realize rapid cutting on the shape what you want on the metal material, like carbon steel ,stainless steel, cooper, aluminum, and galvanized sheet.

5.The 10s exchange platform makes loading and unloading more convenient and more efficient.

TECHNICAL PARAMETER

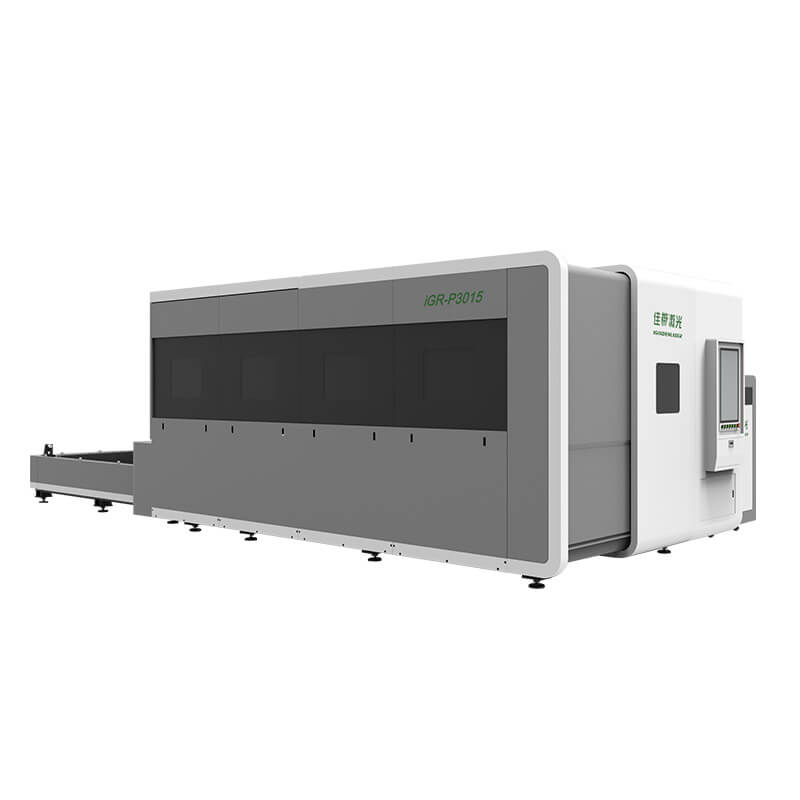

Model		iGR-PH 3015
Working area		3050*1500mm
X axis stroke		1550mm
Y axis stroke		3050mm
Z axis stroke		300mm
Accuracy	X, Y, Z axis positioning accuracy	±0.03mm
Accuracy	X, Y, Z axis repositioning accuracy	±0.02mm
Speed	X, Y axis max. running speed	100m/min
	Z axis max. running speed	30m/min
	X, Y, Z axis max. accelerated speed	1.5G
Power supply	Phase	3
	Nominal voltage	380V
	Frequency	50/60Hz
Machine body	Max. working loading	800kg
	Body weight	5500kg
	Size(LWH)	859529592375mm
Laser power		1000w/ 1500w/ 2000w/ 3000w/6000W/12000w/20000w
Worktable optional		30001500mm/ 40001500mm/40002000mm /60001500mm/6000*2000mm

IgoldenLaser innovates and upgrades the laser cutting technology accumulated over the years, launches a variety of advanced laser cutting equipment, provides efficient and professional laser sheet metal processing solutions for the sheet metal processing industry, and ultimately maximizes the value of customers.

Get Price!

Laser cutting plate and pipe cutting machine 2

High strength welded bed

The bed is machined and annealed by large planer to eliminate internal stress and provide higher tensile strength and rigidity.

Integrated equal strength welding bed, equipped with high precision rack guide to ensure machining accuracy.

Dual pneumatic automatic chuck

Both sides of the electric chuck design, one key to open the chuck, automatic open worry;

The speed is 3 times that of the electric chuck, reducing the loading waiting time pneumatic clamping, clamping force is large, stable, not loose, not slipping on the heavy pipe, to ensure cutting accuracy.

Autofocus laser cutting head

Auto focus, without manual adjustment, the focus speed is increased by 10 times, and the repeatability is 50 microns.

Multi-level perforation, supports continuous focusing, and completes automatic cutting of plates of different thicknesses and materials.

Intelligent Control System

Automatic edge patrol, full tracking compensation, avoid waste of raw materials, and ensure cutting accuracy and quality.

One-key processing, batch processing can be set to realize batch processing and improve processing efficiency.

Laser cutting plate and pipe cutting machine 32

Application of Fiber Laser Cutting Machine

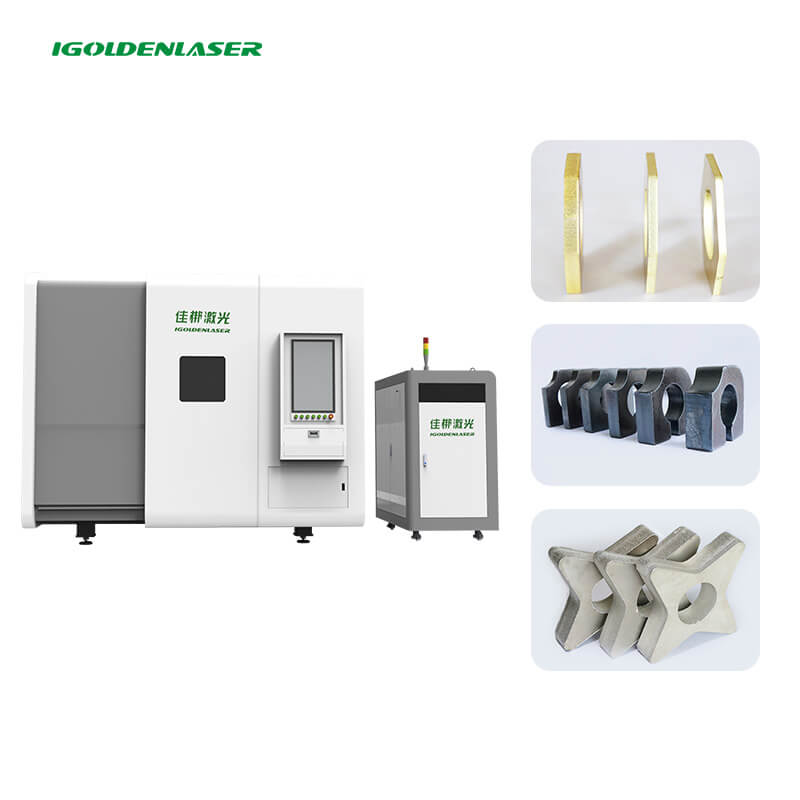

Full Enclosed Laser Cutting Machine Applied Materials: Applicable Industries Carbon Steel, Stainless Steel, Copper, Brass, Aluminum Alloy, Galvanized sheet, etc.

Fiber Laser Cutting Machine Application Industries: Sheet metal fabrication, Automobile manufacture, Electrical cabinet, Elevator and escalator, Kitchen appliance Metal doors and windows.

Contact Us Today to Get Price!

Fiber Laser Cutting Machine Buyer Guide

Advantages of CNC fiber laser?

1. Good beam quality. The waveguide structure of the fiber laser determines that it is easy to obtain a single transverse mode output. Besides, it is unlikely to be affected by external factors, which can achieve high brightness laser output.

2. High efficiency. The overall electro-optical efficiency of commercial fiber lasers is as high as 25%, which is conducive to cost reduction, energy-saving, and environmental protection.

3. Good heat dissipation. The CNC fiber laser uses thin rare earth element doped fibers as the gain medium, which has a very large surface area to volume ratio. This is conducive to heat dissipation. The water-cooling method for high-power fiber laser can avoid the loss of quality and efficiency caused by the heat effect.

4. Compact structure and high reliability. Since the fiber laser uses fine and flexible fiber as the gain medium, it helps to compress the size and save cost.

5. Maintenance free. There is no optical lens in the resonant cavity of the CNC fiber laser. So it has the advantages of adjustment-free, maintenance-free, and high stability, which is incomparable to traditional lasers.

What Are Laser Cutting Systems Used For?

They are the most common automatic cutting tools used in a wide range of applications inlcluding personalization (customization), digital printing, medical technology, fab labs, education, architectural models, smart phones and laptops, computers & electronics, toys, watches, arts & crafts, awards, trophies, rubber stamps, packaging design, die cut, mold making, signs making, displays making, giveaways, electronics industry, automotive industry, signage, mechanical engineering, ball bearing, jewelry making, fashion & apparel fabrics, stencils, paper cards, car floor mats & liners, textile and garment industry, bar code serial numbers, watches, machining industry, data plates industry, packaging industry.

How Many Types of Laser Cutting Machines?

These tools are identified into metal cutters, wood cutters, fabric cutters, leather cutters, paper cutters, acrylic cutters, plastic cutters, foam cutters, paper cutters based on materials to be cut. These cutting machines are classified into fiber or CO2 laser machines based on sources. These kits are defined into handheld, portable, mini, small, tabletop, benchtop, desktop styles. The most common types of cutting tables include 2×3, 2×4, 4×4, 4×8, 5×10, 6×12 based on the workbench sizes. Before buying, take some measurements of your workshop space to ensure that it will fit, and buy the right cutting table. The cutting systems are divided into 3 axis types, 4th axis (rotary axis) types, 4 axis types, 5 axis types, flatbed cutters, tube cutters, home types, hobby types, die cutters, profile cutters, and industrial cutting systems based on applications.

Production Facility

International Shipping Around the World

IgoldenLaser is a professional laser cutting machine manufacture. In order to meet the market requirement for laser cutting machine, Igolden Laser now launch a new kind of CNC laser cutting machine. It has the two kinds of platform, that is the exchange platform to feed automatically, greatly improving working efficiency.

Fully enclosed protection improves the safety of use; laser protective glass protects the human body from laser radiation; the automatic dust removal system is environmentally friendly; the intelligent monitoring system reduces the accident rate and improves work efficiency and stability.
