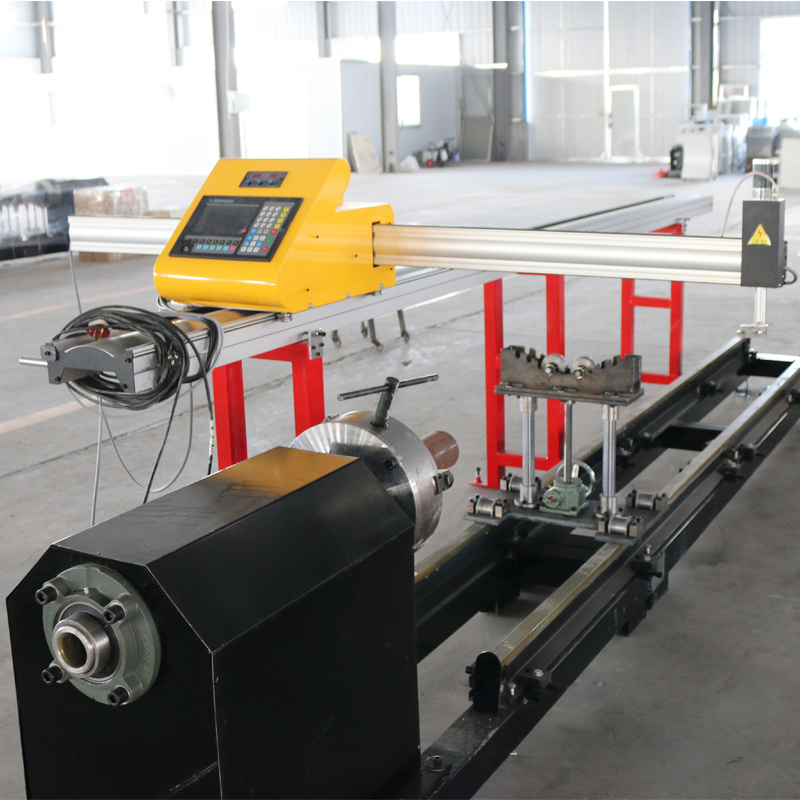

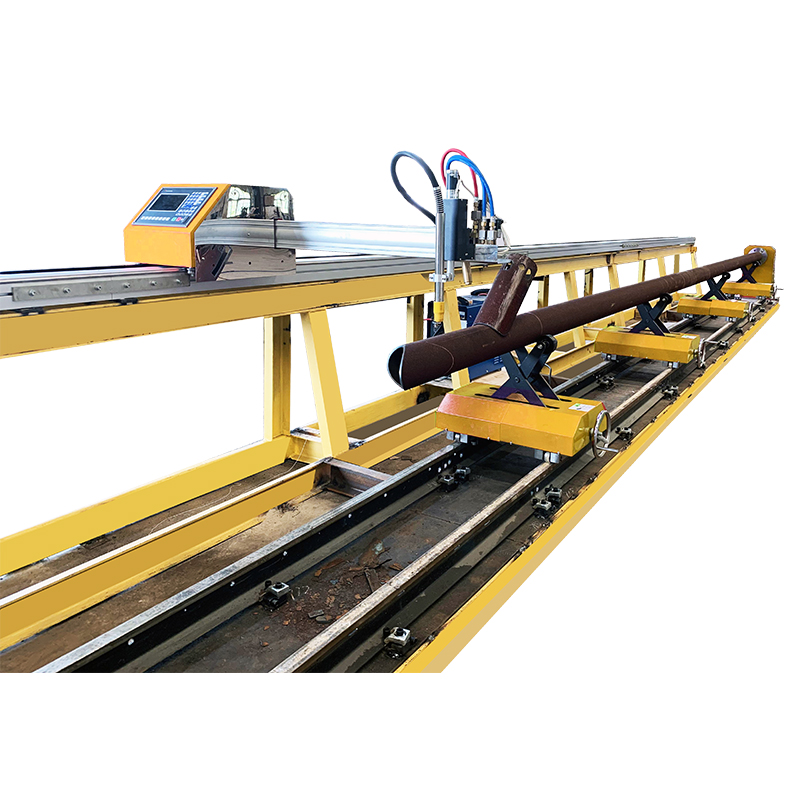

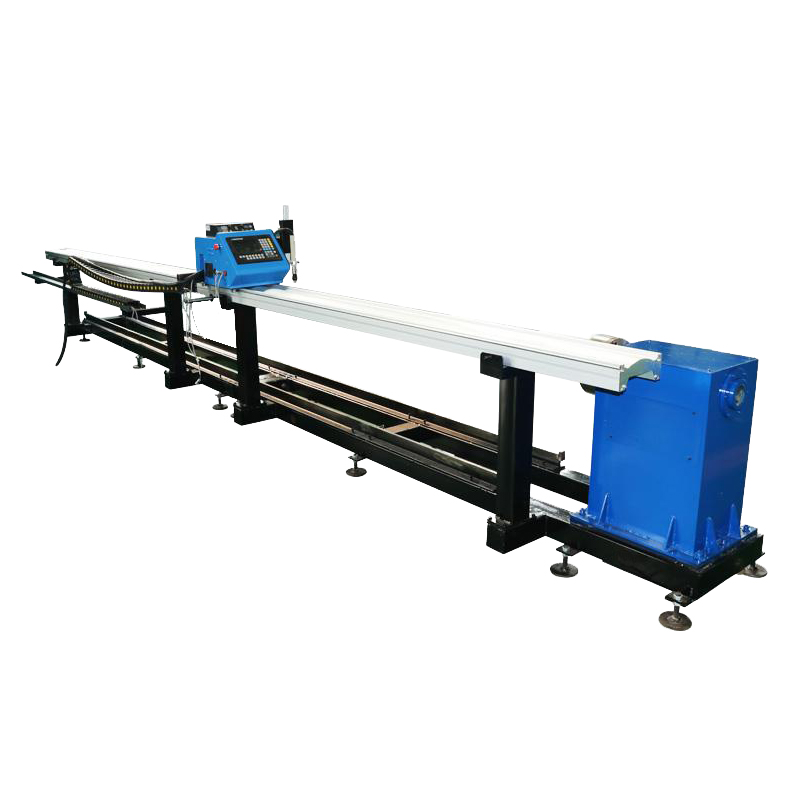

Intersecting Line Flame Plasma Cutting Machine

CNC Pipe Intersecting Line Flame Plasma Cutting Machine

New style CNC Plasma Round Pipe Cutting Machine, Offering an economical, entry-level CNC pipe-cutting solution in a compact footprint, Our offered CNC Pipe Plasma Cutting Machine is created with the use of industry grade components under the guidance of our trusted workforce.

Send Inquiry Chat Now

Category: Plasma Cutting Machine

Description
Reviews (0)

iGP-T

Gantry CNC Plasma Flame Cutting Machine

The intersecting line cutting machine is suitable for cutting cylindrical orthogonal, oblique, eccentric and other phase inertial holes, square holes, elliptical holes on various pipes, and can cut the intersecting phase inertial lines at the end of the pipe. This type of equipment is widely used in the production of metal structural parts, power equipment, boiler industry, petroleum, chemical and other industrial sectors.

It only needs to input the pipe diameter, intersection angle and other parameters of the pipe intersecting system, and it can perform multiple intersection forms between the main pipe and several branch pipes. Calculation of intersecting lines, and complete multi-axis linkage control to achieve various complex intersecting line cutting.

Features and Advantages of Portable Plasma Tube Cutting Machine

1.The machine tool adopts high rigidity design and undergoes secondary aging treatment to fully eliminate internal stress. The precision of the machine tool is stable for a long time, ensuring the cutting accuracy of the whole machine.

2.Adopt gear and rack meshing, coupled with precision planetary gear box for speed reduction, with high output torque, low noise, long life lubrication and other characteristics, so as to achieve high positioning transmission.

3.Using professional CNC pipe cutting software, easy to learn and easy to use, reduce operator requirements and greatly improve work efficiency. With professional software, real-time processing of various graphics and text can be realized. Simple to use, flexible and convenient.

4.Intersecting line cutting machine is suitable for cutting cylindrical inertial line holes, square holes, oval holes, etc. on various pipes, and can cut intersecting lines at the end of the pipe.

TECHNICAL PARAMETER

Effective cutting range of length (mm)	3000mm
Effective cutting range of pipe diameter (mm)	Ф30mm～Ф320mm
Input voltage	220±10%V AC 50HZ/60HZ 220W
Total power	约2000W
Rated rotational speed	0-15rpm( Custom ）
Reset accuracy	±0.2mm/m
Tube Ovality	≤2%
Running accuracy	±0.2mm/m
Number of CNC controlled axes	2 axis
Chuck size	250#
Torch lift stroke	180mm
Maximum Tube Weight	约1000KG
Plasma cutting thickness (take LGK-120A as an example)	≤16MM
Flame uses gas form	Oxygen+Acetylene/Oxygen+Propane
Gas pressure	≤0.08MP
Oxygen pressure	≤1.0MP

It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.

Get Price!

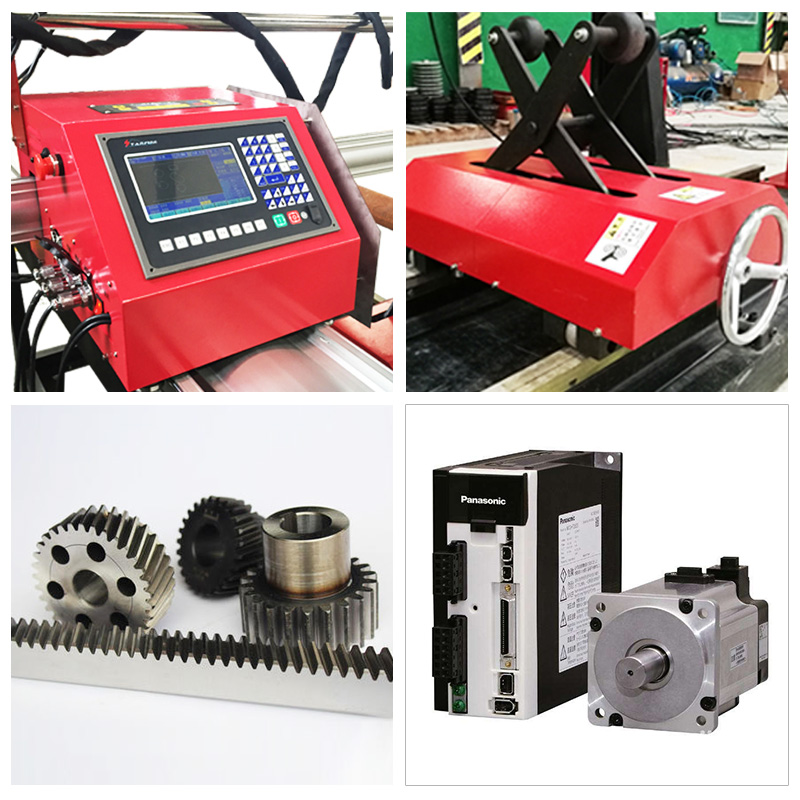

Portable host, easier to operate and more practical Bearing seat, high precision, good wear resistance

Chuck Base

The chuck adopts 250# three-jaw chuck, and the support seat track adopts 24KG/M fine grinding track.Higher precision, better cutting quality and greater bearing capacity.

Advanced Plasma Power Supply

It adopts China’s well-known industrial brand Huayuan industrial plasma power supply. Precise cutting, no burrs, and small bevel. Energy-saving, low consumption, more stable performance.

Fangling F-2300A CNC Operating System

Arc voltage height controller

Digital control, easy to learn and operate, anti-high frequency electromagnetic interference, stable performance.

Application of Portable Plasma Tube Cutting Machine

1.It is suitable for cutting various pipes. Cylindrical orthogonal, oblique, eccentric and other inertial holes, square holes, elliptical holes, and can cut the intersecting inertial lines at the end of the tube. The system can be converted in one piece and supports dual-purpose board and tube.

2.The equipment is widely used in the cutting and processing of pipeline structural parts in the construction, steel structure, chemical, shipbuilding, mechanical engineering, metallurgy, power and other industries.

Applicable materials: stainless steel, carbon steel, gold, silver, aluminum, aluminum alloy, titanium alloy, etc., splicing of dissimilar materials.

Contact Us Today to Get Price!

CNC Plasma Cutting Machine Buyer Guide

What is a Plasma Cutter?

CNC cutter is a process that cuts through the electrically conductive material with the help of hot plasma. Plasma cutting machines use a high-velocity jet of ionized gas that is delivered from the orifice. Plasma conducts electricity from the torch of the plasma cutter to the workpiece and heats the object, thereby melting the material. The high-velocity stream of ionized gas mechanically blows the molten metal away, splitting the materials.

In the simplest term, plasma machine can be used in various types of conductive metals such as mild steel, aluminum, and stainless. The milder is the consistency of the steel; the operator can experience thicker as well as faster cuts.

Plasma Cutting vs Flame Cutting?

Plasma Cutting vs Flame Cutting

Plasma cutting can’t cut as thick material as Flame Cutting
Plasma cutting imparts less heat into the profile, resulting in a significantly reduced Heat Affected Zone on the cut edges
Plasma cutting has a cleaner cut edge
Plasma cutting can cut smaller holes due to a lower kerf (width of material removed by the cutting process)
Bevelled edges and 3 Dimensional sections can be processed by both processes (with the application of a 3rd axis or tilting head).

Plasma Cutting vs Laser Cutting

Plasma cutting can cut the same and greater thicknesses of material than Laser Cutting
Both can have comparable heat affected zones
Both can have a comparable cleanliness of cut edge
Plasma cutting can have a lower kerf (width of material removed by the cutting process
Bevelled edges and 3 Dimensional sections can be processed by both processes (with the application of a 3rd axis or tilting head
Plasma cutting is not affected by the reflective properties of a material, Laser Cutting is not possible with polished or highly reflective materials.

How to Operate a Plasma Cutter?

A plasma cutters tables for sale is capable of cutting thick metal sheets in any shape and size. This computer-controlled machine gives instructions through a computer over the manual handheld plasma cutter. It is compatible with optional CNC parts and improves the accuracy, flexibility, and productivity.

When you purchase this plasma cutting machine, you will receive plasma cutting software that needs to be installed before operating the machine.

Software Used to Operate the Plasma Cutter

The software that comes with the plasma cutter is indubitably one of the most important parts of the machine. It allows the operator to successfully design, cut, and control the operation of the plasma torch. To create top quality designs with the plasma cutter, the operator must use AutoCAD for the CAD part and EXG Code for the CAM portion. The software that actually controls the plasma usually comes along with the CNC plasma table.

CNC plasma cutting software STARCAM is very easy to operate. It consists of 3 modules, first drawing module (StarCAD), nesting module, (StarCUT), and numerical control emulation module (StarTEST). Any layman can read the manual and understand the working process. A short training is also given to the new user to make comprehend with the basics of a 4*8 plasma cutting machine. If you are interested in seeing the work process of this machine, you must read plasma machine software in action.

Production Facility

International Shipping Around the World

The plasma cutting machines provided by our company include flat plasma cutting machine, plate and tube integrated plasma cutting machine, square tube plasma cutting machine, portable plasma cutting machine, round tube plasma cutting machine, gantry plasma cutting machine.

Do you have a thought to DIY or buy an affordable CNC Plasma Cutter? We’ll provide you with the competitive CNC Plasma Table with expert customer service to satisfied your requirements.
