2000W 3000W Laser Cleaning Machine for Rust Removal

Industrial laser cleaning machine is a high-tech product of the new generation of surface treatment. Hoingniu laser, as a fiber laser cleaning machine manufacturer, we supply fiber laser cleaner, robot laser cleaning machine, which can meet your specific cleaning needs.

Customized appearance and power: 50w 100w 150w 200w 300w 500w 1000w 1500w 2000w 3000w .

Send Inquiry Chat Now

Category: Laser Cleaning Machine

Description
Reviews (0)

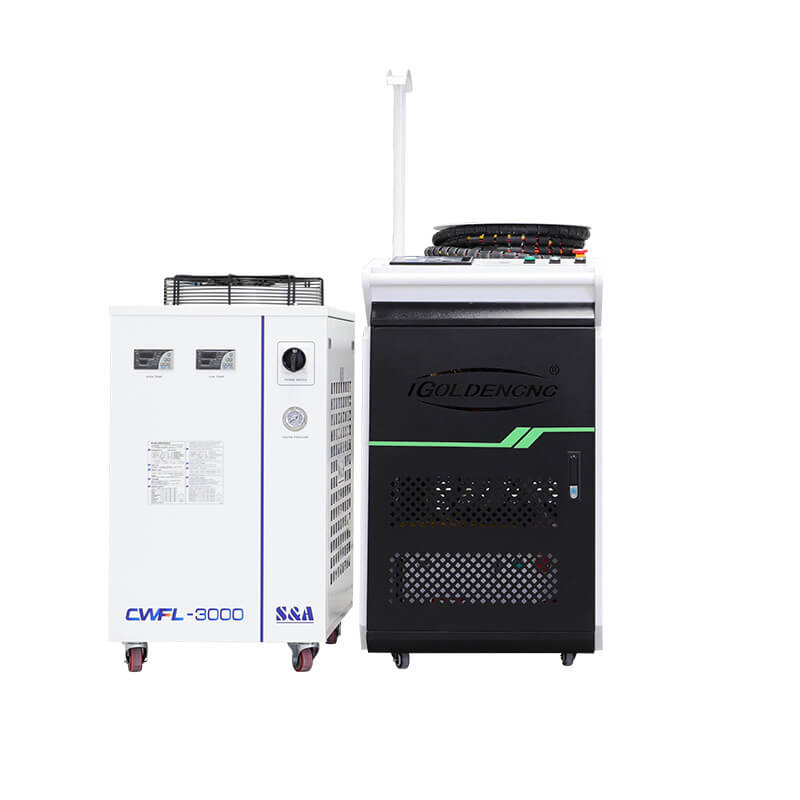

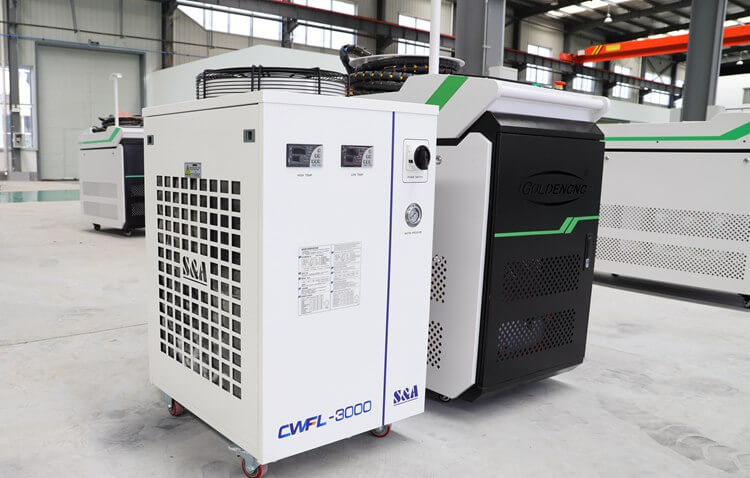

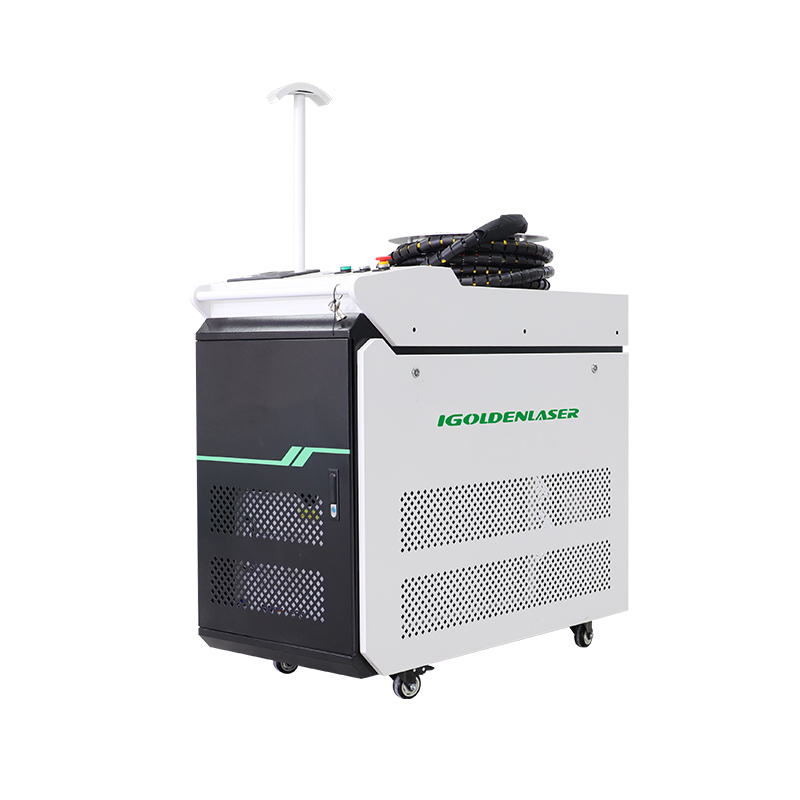

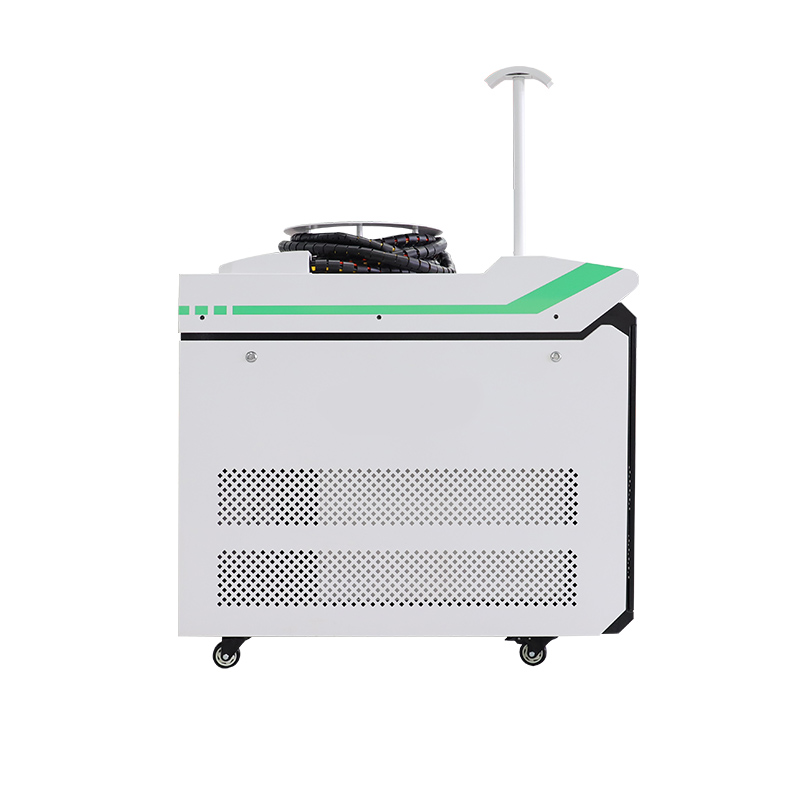

IGCL-HC（2000w & 3000w）

High-power Laser Cleaning Machine

This machine is cleaned by laser and has features – no grinding and non-contact. The laser cleaning machine is suitable to clean not only organic pollutants, but also inorganic substances, including metal rust, metal particles, dust, etc. It can achieve the processing effects of rust removal, paint removal, oil removal, cultural relic repair, glue removal, coating removal, and plating removal. Moreover, It is suitable for cleaning processes, such as rust, thin paint layer, shallow oil stain or technical, derusting of metal polished surface, pre-heating process treatment of sheet metal parts, and other processes.

iGCL series laser cleaning machine is the new generation of safe, high efficiency, energy saving, environment-friendly metal laser cleaning equipment, using handheld swing cleaning head, touch screen and button control, combined with the advanced integrated control system, the precision CNC fiber laser cleaning machine is assembled. It meets the cleaning requirements of complex shapes and fine positioning in the industrial processing field, and achieves higher cleanliness cleaning effects and lower overall cost production benefits.

Fiber Laser Cleaning Machine Advantages

1. This laser cleaning machine adopts the non-contact cleaning method. This method does not damage the substrate of the parts. And the cleaning effect is better.

2. Cleaning in a precise way. This method can realize selective cleaning of precise position and precise size.

3. No chemical cleaning fluid, no consumables, safe and environmentally friendly.

4. The operation is simple, and it can be hand-held or coordinated with the robot to achieve automatic cleaning.

TECHNICAL PARAMETER

Single axis	Dual axis
1000W/1500W/2000W: Single-phase 220V±10%, 50/60Hz AC 3000W: Three-phase 380V±10%, 50/60Hz AC
Continuous light
Simplified, Traditional, English, Japanese, Korean, German and 13 other languages	Chinese, English, Russian, Japanese, Spanish, Korean, German, French	Simplified, Traditional, English, Japanese, Korean, German and 13 other languages	Chinese, English, customizable
Linear mode	Line, Rectangle, Sine, Double Helix, Circle, Torus, Free Pattern	6 kinds: horizontal line, vertical line, ellipse, etc	Straight line, helix, rectangle, circle, rectangle fill, circle fill
None	The setting range is 0-1000mm	None	None
None	The measured temperature is the internal temperature of the cleaning head, the upper limit of the temperature can be set, and the default is 60°C	None	None
1kHz-30kHz continuous gradient adjustable (support customization) 10%-100% continuous gradient adjustable
600mm	400mm, 500mm: customized, cycle 2 weeks; 650mm: main push	600mm	800mm
0.78kg	＜1.2Kg	0.96kg	0.9KG
0-300mm	0-300mm	0-200mm	0-600/650mm
Cabinet standard 7 inches	Cabinet standard 7 inches + cleaning head standard 2.8 inches	Cabinet standard 7 inches	Cabinet standard 7 inches

Compared with Pulse Type Laser Cleaning Machine, Continuous Fiber Laser Cleaner is More Suitable for Applications Where High Efficiency is Required.

Get Price!

Single/Dual Axis Laser Head

Different models correspond to different laser cleaning head, small and light, different cleaning modes, multi-system compatible.

Touch screen panel

Friendly interface; Rich functions, a variety of cleaning modes are optional, easy to learn.

Max Laser Source

Small weight, light weight, easy integration, high performance, more stable processing; The optical path module has good protection and high safety.

Application of Fiber Laser Cutting Machine

Laser cleaning machines are widely used in mold cleaning, industrial rust removal, old paint and film removal, pre-welding pretreatment and post-welding treatment, degreasing of precision parts, decontamination and oxide layer removal of electronic components, cleaning of cultural relics, etc. Widely used in metallurgy, moulds, automobiles, hardware tools, transportation, construction appliances, machinery and other industries.

Contact Us Today to Get Price!

Laser Cleaning MachineBuyer Guide

What is a laser cleaning machine?

Laser cleaning machine is an automatic equipment that releases high-energy pulsed laser beam to irradiate and remove the rust, dust, contaminant, painting and oxide on the surface of the work piece. The principle of laser cleaning technology is that the contaminants on the surface of the work piece melt or evaporate instantly after being irradiated by the pulsed laser beam, so that the surface of the work piece becomes clean. Laser cleaning is efficient and eco-friendly. It is becoming more and more popular in various industries.

The efficient laser cleaning lies in the fiber laser generator which releases high-density fiber laser beam. Traditional industrial cleaning methods usually use chemical reagents or mechanical methods to remove the contaminants on the surface of the work piece. These methods have some disadvantages, such as low efficiency, damage the substrate or generate additional contaminants. Moreover, with the increasingly strict environmental protection laws, there are fewer chemicals that can be used in the industrial cleaning. Therefore, looking for an eco-friendly cleaning method is a major problem for many companies.

The table below is a comparison of various cleaning methods. Compared with the traditional mechanical cleaning method, chemical cleaning method and ultrasonic cleaning method, laser cleaning does not require any organic solvents and is pollution-free. The laser cleaning process has no noise and no damage to human body and environment.

How to use a laser cleaning machine?

Laser cleaning machine has the characteristics of non-contact, no thermal effect, no mechanical force on metal surface, no consumables and low processing cost. This machine has been widely used in many industries. So how to use a laser cleaning machine after you buy one? Here are the main steps for your reference. Please always remember that you need to read the operation brochure provided by the manufacturer to understand the precautions and operation instructions. Wear protective glasses and other protective equipment to ensure your safety. And do not look directly at the laser output position with you eyes during the cleaning. Check the machine parts and make sure nothing is damaged or missing, and no dust or dirt on the machine.

Check the power supply of the machine and make sure it is grounded.
After checking the machine, insert the plug into the power socket. Turn on power switch and set parameters on the control panel.
Take out the cleaning gun and open the cover, aim the gun head at the work piece that you need to clean and start your cleaning work.
After the cleaning process, release the gun button, turn off the laser switch, turn off the power, insert the cleaning gun back into the storage box, and then unplug the power plug.
If you encounter any problems during the operation, please seek help from after-sales engineer and do not disassemble the machine by yourself. Unauthorized disassembly and assembly may damage the machine or bring danger to the operator.

How to buy a laser cleaning machine?

More and more companies and individuals want to buy a laser cleaning machine to support their business. How to buy a suitable laser cleaning machine that fits your needs? You can follow the below three steps.

First of all, contact with a qualified manufacturer that has profound experience in the manufacturing of laser cleaning machines. A reliable manufacturer not only produces high quality laser cleaning machines, but also provides you complete machine data and thoughtful after-sales service. Before you buy a machine, it is essential to inspect the factory and check the real cleaning effect of the machine.
In addition, check the machine’s appearance. The design, structure and manufacturing process can almost directly determine the quality of the machine. The design style of each manufacturer is different. A manufacturer that has mature production technology always continuously improve the machine’s appearanceand structure under the premise of ensuring quality.
Choose the machine according to your needs and budget. Tell the salesperson about your cleaning requirements and budget plan, and they will recommend the suitable machine and configure the parameters, machine size and parts. Let the salesperson know your detailed processing requirement (processing materials, cleaning speed, etc.) so that you can get a most cost-effective laser cleaning machine.
