Laser Cutting for Metal: A Beginner’s Guide

What are some common applications of CNC laser cutting?

CNC laser cutting is used in a lot of different industries because it’s so precise and can shape all kinds of materials. Here are some of the sectors that often use this technology:

• Automotive Industry: CNC laser cutting is really important in vehicle manufacturing. It’s used to shape sheet metal parts precisely, cut car body panels, and make small components with detailed designs.
• Aerospace Industry: In the aerospace sector, precision is super important. CNC laser cutting machines are used to make parts with really small tolerances, and they’re great for cutting the exotic metals and composites that are often used in this industry.
• Electronics Industry: From making circuit boards to creating parts for smartphones, CNC laser cutters are really useful tools in electronics production.
• Medical Equipment Manufacturing: CNC laser cutters make it easier to produce surgical tools, medical devices, and orthopedic implants, where details and accuracy are really important.
• Jewelry Industry: CNC laser cutting is used a lot in jewelry making for cutting and engraving. It can make really intricate designs with high precision.
• Construction Sector: Big CNC laser cutting machines are used to cut structural components for buildings, bridges, and other construction projects.

What are the advantages of using CNC laser cutting?

CNC laser cutting has a lot of advantages, which is why it’s so popular in different industries. Besides being really precise, here are some other great things about it:

• Higher Quality Edges: Because laser cutting doesn’t touch the material directly, there’s less chance of mechanical distortion. This means you get cleaner edges with hardly any burring.
• Narrower Kerfs: Compared to old-fashioned cutting methods, CNC laser cutters make a much smaller cut width (kerf). This lets you make detailed cuts and use your material more efficiently.
• Smaller Heat-Affected Zone (HAZ) and Less Material Distortion: Lasers make a smaller HAZ, so there’s less chance of the material getting distorted by heat.
• Less Contamination and Waste: The precision of the CNC laser cutter means there’s less waste material. And because it doesn’t touch the material, there’s less risk of it getting contaminated.
• Less Maintenance Required: CNC laser cutters usually need less maintenance than mechanical cutting machines because they don’t touch the material.
• Less Repair Costs: There are fewer mechanical parts in a CNC laser cutter, so there are fewer things that can wear out or break. This means lower repair costs.
• Greater Operator Safety: The operation of a CNC laser cutter is usually automated and enclosed, so it’s safer for the operator than manual cutting methods.

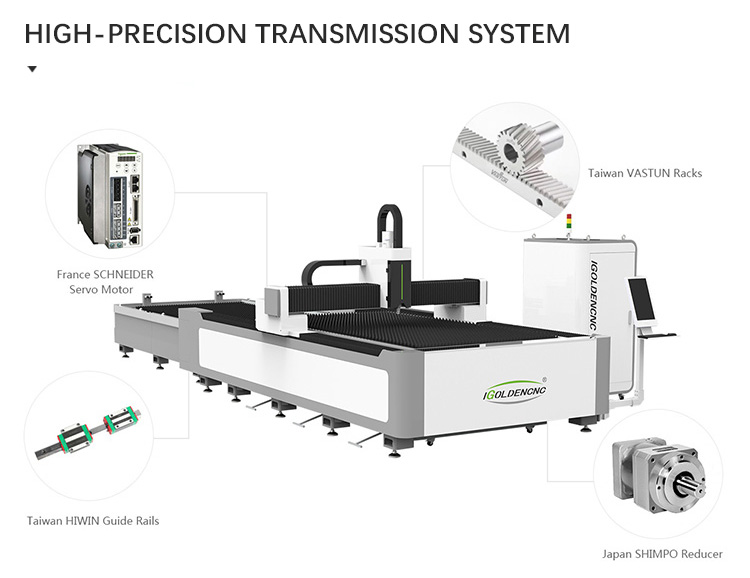

How correct and precise is CNC laser cutting?

CNC laser cutting machines are known for being very precise. The standard tolerances for CNC laser cutting are usually between +/- 0.1 mm and +/- 0.01 mm, depending on the machine, the material, and how complex the part is. This level of precision lets industries make parts with really detailed designs and strict size requirements.

How Much Does CNC laser cut Cost?

The cost of CNC laser cutting can change based on a few things. On average, CNC laser cutting services can cost between $75 and $150 per hour, depending on how complex the job is and what materials you’re using. Here are some things that can affect the total cost:

• Material Type: Different materials need different laser power levels and cutting speeds, and this can change the cost.
• Cutting Complexity: Complex cuts or detailed designs take more time and can make the cost go up.
• Material Thickness: Thicker materials need more power and time to cut, so they cost more.
• Machine Operation Time: If the machine runs for a long time, it can cost more because of more energy use and possible wear on the machine.
• Post-Processing Requirements: If you need extra processes like cleaning, polishing, or coating, this can add to the total cost.

How much does a CNC laser cutting machine cost?

As technology gets better, the price of CNC laser cutting machines can be very different. Things like the machine’s power output, size, brand, type of laser, and what materials it can manage all affect the total cost. It’s important to know that these machines are a big investment, but they can make your work more precise, productive, and faster in different industries.

• Small or Hobbyist CNC Laser Cutters: These are good for beginners, hobbyists, or small businesses. They usually have less power and a smaller working area. Prices are between $300 and $5000.
• Mid-Range CNC Laser Cutters: These are good for small to medium businesses that use them regularly. They have more power and a larger working area. You can expect to pay between $5000 and $20,000.
• Industrial or Professional CNC Laser Cutters: These are made for heavy use in industries like aerospace and manufacturing. They usually have high power output and a large working area. Prices start at around $20,000 and can go up to $100,000 or more, depending on the details.

What types of materials can be cut using a CNC laser cutting machine?

CNC laser cutters are really versatile and can cut a wide range of materials accurately and repeatedly. They’re usually used for metals and non-metals and can handle different thicknesses depending on the material and the laser power. Here’s a closer look at what these machines can cut:

• Metals: This includes steel, aluminum, and other metals. Laser cutters are great for precisely cutting metal sheets, and the power output and laser type affect the cut quality and how thick the metal can be.
• Plastics: Both thermoplastics and non-thermoplastics can be laser cut, but you need to be careful because some can produce harmful fumes. Types include acrylic, ABS, and polycarbonate.
• Thermoplastics: These are plastics that can be molded when heated. Examples are nylon, polyethylene, and polyvinyl chloride.
• Rubber: Laser cutters can cut rubber precisely, which is great for making gaskets, seals, and other custom rubber parts.
• Leather: Whether it’s for fashion, upholstery, or crafts, laser cutting machines can cut leather precisely, including complex patterns and designs.
• Ceramics: CNC lasers can cut and engrave ceramics, but you need to be careful to prevent cracking or breaking.
• Wood: From hardwoods to softwoods and plywood, laser cutters can make precise cuts and detailed designs.
• Acrylic: Laser cutting is a great way to work with acrylic, giving you clean edges and intricate designs.
• Foam: Good for packaging, insulating materials, and crafts, foam can be cut cleanly and efficiently with a laser cutter.
• Textiles: From cotton to polyester and even delicate fabrics like silk, laser cutters can make precise cuts without fraying.
• Paper: Whether it’s for crafts, model-making, or packaging, laser cutters can handle different thicknesses of paper.
• Composites: Composites like fiberglass and carbon fiber can be cut with a CNC laser, but you need to be careful because of the risk of harmful particles.
• Stone: Laser cutters can engrave stone, but it’s usually not possible to cut through it because it’s too thick and hard.
• Glass: Like stone, laser cutters are more often used to engrave glass than to cut it.

Are There Any Limitations to CNC laser cutting?

Even though CNC laser cutting machines are efficient and precise, they do have some limitations. Understanding these is important if you want to use these machines as well as possible and get the results you want.

• Difficulty with Certain Materials: While CNC laser cutters can manage a lot of materials, some are harder to cut than others. Reflective metals like copper and brass can reflect the laser beam, which can damage the machine. Also, cutting materials like polycarbonate can produce harmful gases.
• Thickness Limitations: The thickness of the material that a CNC laser cutter can manage depends on the machine’s power. Lower power machines might have trouble with thicker materials, especially metals.
• Lack of 3D Cutting Capability: CNC laser cutters are usually 2D cutting tools. They can’t do the same kind of deep 3D shaping that tools like CNC routers can.
• Heat Affected Zone (HAZ): The heat from the laser can change the properties of the material around the cut, and this might affect its strength.

What are some common problems and defects with CNC laser cutting?

Even with high precision, laser cutting isn’t always perfect. There are some common problems and defects that can happen and affect the quality of the cut. These include:

• Burn marks: Too much heat can cause the edges of the material to change color or burn.
• Dross: This is a byproduct of the cutting process. It’s molten material that hardens on the bottom edge of the cut.
• Warping: The heat from the laser can make thin materials bend or warp during cutting.
• Incomplete cuts: If the laser power is too low or the cutting speed is too high, the laser might not cut all the way through the material.
• Overcutting: When the power is too high or the speed is too slow, the laser might cut more than it should.

What are some design tips for CNC laser cutting?

CNC laser cutting is an advanced technology that gives designers and manufacturers a lot of control over the cutting process. To get the most out of it, there are some things to think about when you’re designing.

For example, choosing the right laser power is really important to get the cut you want. Depending on the material and its thickness, you need to adjust the power output of the laser. A CO₂ laser cutter might be better for some materials like wood, plastic, or acrylic, while a fiber laser could be a better choice for metals.

Designers should also think about the cutting speed and the gas used. The best cutting speed often depends on the material, the machine, and the quality you want. Sometimes, slower speeds can give you more precise cuts, and other times, faster speeds can reduce the heat impact zone and make the cut better.

Material compatibility and how the material behaves when it’s being laser cut is another important thing to consider. You need to know how different materials react to the heat from the laser beam, and how this affects the shape and finish of the cut.

And finally, design files are really important in CNC laser cutting. Formats like DXF or DWG are usually used, and design software like CorelDraw or Adobe Illustrator can help you create the designs. The design file should be clear and correct, so the laser cutter knows exactly where to cut or engrave.

Here are a few more design tips to think about:

• Avoid intricate designs that could damage the material or cause problems.
• Think about the kerf width when you’re designing your parts.
• Remember the laser’s tolerance when you’re designing for tight fits.
• Make sure there’s enough space in your design for heat to escape so the material doesn’t melt or deform.

How long does CNC laser cutting typically take?

The time it takes for a CNC laser cutting operation can be very different and depends on several things. These include the power of the laser, how complex the design is, the thickness and type of material, and how precise you need to be.

As a rough guide:

• For thin sheet metals (1mm), a CNC laser cutting machine might only take a few minutes to cut a simple shape, but a detailed pattern could accept to 15 – 20 minutes.
• For thicker materials (10mm), cutting time could be from 20 minutes for a simple design to over an hour for a more complex pattern.
• If engraving is involved, this can make the operation take even longer, depending on how complex and big the engraving is.

Remember, these are just rough estimates, and the actual cutting time could be shorter or longer, depending on the things we mentioned above.

What are the Main Terminologies used in CNC Laser Cutting?

When you get into CNC laser cutting, you’ll come across a lot of terms. These are really important for understanding how things work in this industry. Here are some of the most common ones:

• CNC (Computer Numerical Control): This is when a computer automatically controls machining tools. A CNC machine works on a piece of material (like metal, plastic, wood, ceramic, or composite) to turn it into the shape you want.
• CAD (Computer-Aided Design): CAD is software that designers use to make precise 3D models or 2D drawings of a physical part. These designs are then used by the CNC machine to cut and shape the material.
• CAM (Computer-Aided Manufacturing): This technology uses computer software and machinery to make manufacturing processes easier and more automated. CAM is often linked with CAD for better functionality.
• Kerf: In laser cutting, kerf is the width of the groove made by the laser beam. Knowing the kerf width is important for precision because it can affect the size of the cut part.
• Focal Length: The focal length in a laser cutting machine is the distance between the lens and the material’s surface. It has a big impact on the quality and precision of the cut.
• Assist Gas: During cutting, an assist gas like oxygen, nitrogen, or air is used to push out the molten material and helps with the cutting process. The type of gas depends on the material and the cut quality you need.
• Cutting Parameters: These are settings like the speed of the laser, power, aid gas pressure, and focal point position. You customize them to get the cut you want.
• Pierce Time/Dwell Time: The time it takes for the laser to pierce the material before cutting starts is called pierce time or dwell time.
• Nozzle: The nozzle in a laser cutting machine directs the assist gas into the kerf to push out the molten material.
• Chiller: In laser cutting machines, chillers are used to cool down the laser and the optics, so they work well and last longer.
• Nesting: This is the process of arranging the parts to be cut on the material to waste as little as possible.
• CNC Controller: The CNC controller is like the brain of the CNC machine. It reads and does the G-code or M-code programming instructions to control the machine.
• Laser Power: The power output of a laser, measured in watts, affects both the cutting speed and the thickness of the material you can cut. It also affects the cost of the machine.
• Wavelength: The wavelength of the laser decides how well the material absorbs heat for melting and vaporizing. Different materials absorb different wavelengths better.
• Beam Mode: The way the intensity is spread across the laser beam affects the focal spot size and cut quality. You can change the beam mode for different cutting tasks.
• Focal Spot: The focal spot is where the laser beam is focused on the material. The size and position of the focal spot have a big impact on the cutting quality and speed.
