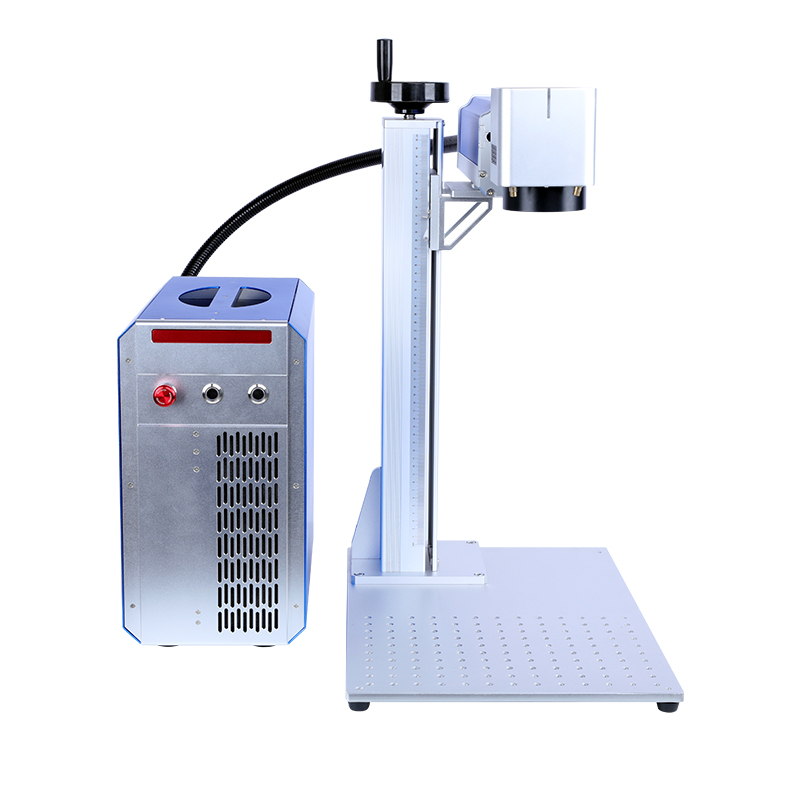

Portable Mini Split Fiber Laser Marking Machine 20W,30W,50W

The UV laser source has different cooling way, air cooling water cooling, so the machine appearance also will different，Desk type can both use these two kinds of source, portable type only can use air cooling source.

Send Inquiry Chat Now

Category: Laser Marking Machine

Description
Reviews (0)

iGR-L(P)

Laser Marking Machine

.Laser marking machine is one kind of professional laser marking equipment which integrated light, machine, electricity, independent research and development and production, The key components are imported, Our machine with advantages of novel style, unique structure, convenient operation, high frequency modulation, high marking speed and precision, stable performance, widely used in all kinds of metallic and nonmetallic surface for permanent marker.

It is widely used in electronic, plastic, packaging, construction material, light-fixture, cosmetics and so on, also consumable free, non-toxic, non-pollution.

Laser marking machines use a high-powered laser beam to make permanent marks on a variety of materials, including metals, plastics, ceramics, and glass. There are several different types of laser marking machines, including fiber laser, CO2 laser, and UV laser machines. Each type of machine uses a different type of laser and is best suited for marking certain types of materials.

Features of Split Laser Marking Machine

1. Split type wear-resistant aluminum case design.

2. Built-in high-speed marking laser motion control system.

3. The fiber laser beam has good quality, high reliability and high precision.

4. Fast marking on metals and certain non-metal materials (such as certain hard plastics).

Mini Split Laser Marking Machine Parameter Configuration

Laser power : 20W,30W,50W

Laser wavelength : 1064nm

Laser type : Fiber Laser

Repeat Frequency : 20KHz-80KHz

Repeat Positioning Accuracy : 0.005mm

Min linear width : 0.01mm

Marking Depth : 0.01-0.5mm

Rated Power Consumption : ＜ 500W

Operating Voltage : 220V/50Hz/15A

Graphic formate supported : PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO. DXF,etc

Working temperature : 5-35 ℃

Cooling : Air Cooling

Economic fiber laser marking machine for sale, faster marking speed, more sophisticated engraving effect, 20w output power, integrated module design, maintenance-free.

Get Price!

Laser Module

Max/ Raycus/ IPG as your reference.

20w/30w/50w laser power as your requirement.

Stable operation, lifespan of more than 100,000 hours

Field Lens (Focus Lens)

Singapore Wavelength Focus Lens. Singapore imported high transmission field lens, small spot, high precision, fast speed, light transmittance above 99%.

Laser Protective Glasses

Laser protective glasses can prevent or reduce laser damage to human eyes. Laser goggles are highly efficient and safe goggles, which are comfortable, beautiful, safe and reliable

Rotation Axis

Marking and processing of arc surfaces, such as rings, thermos cups, etc., and an 8-station fixture is optional.

Application of Laser Marking Machine

Laser marking of electronic products’ LOGO, model, place of origin laser marking of food, PVC pipe, medicine packaging material (HDPE, PO, PP and so on); micro-hole drilling, diameter d≤10μm

It is widely used in marking and slicing of flexible PCB,silicon wafer micro-hole ,blind hole processing,LCD glass qr code , glassware surface punching, metal surface coating , plastic keys, electronic components, gifts, communication equipment, construction materials ,rubber and other non-metallic materials.

Contact Us Today to Get Price!

Production Facility

International Shipping Around the World

At IGOLDEN, we highly value customer feedback as it helps us to continuously improve and deliver exceptional products and services. We are always eager to hear from our customers and believe that such interactions are essential to our growth. We invite you to watch our video testimonials and witness the remarkable performance of our laser machines for yourself.

Fiber Laser Marking Machine with enclosed structure for areas where safety and recovery are the key requirements.
