Laser Cutting Machine for Sheet Metal

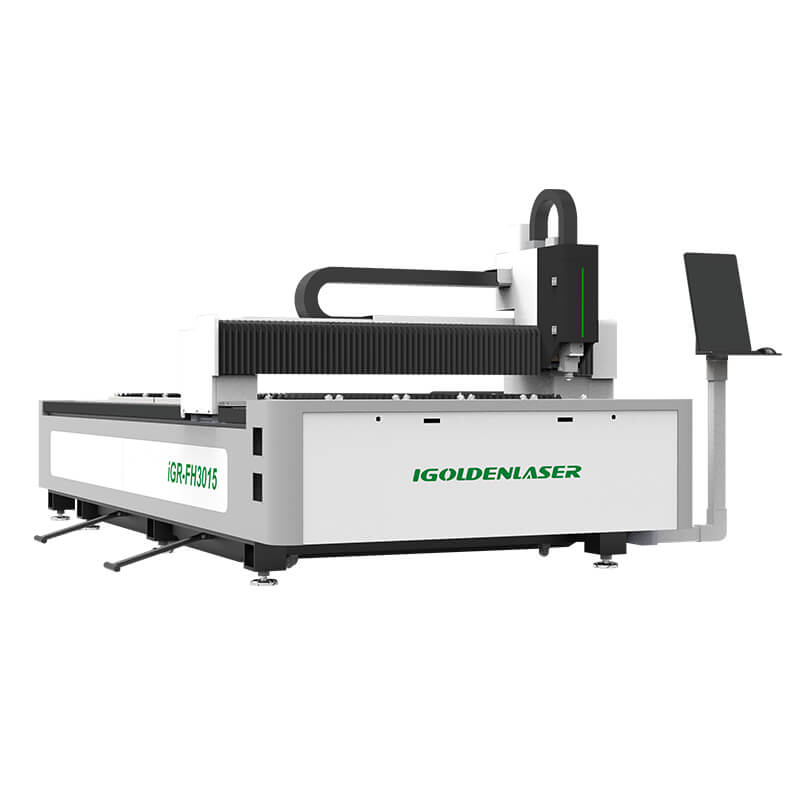

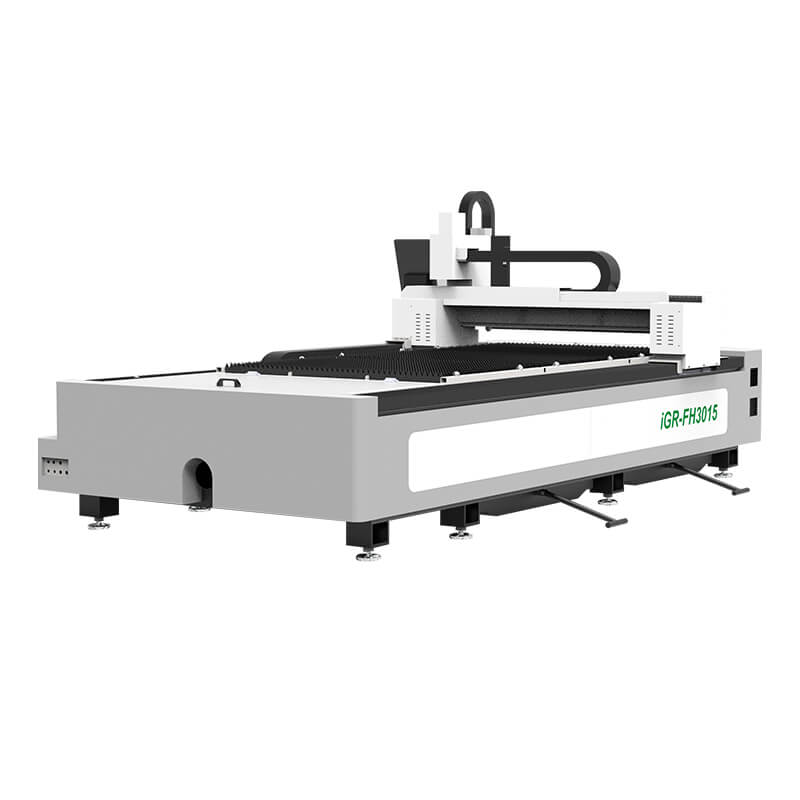

The iGR-FH laser cutting machine is a high-configuration fiber laser cutting machine with a single cutting platform. can be equipped with a 1kw-12kw fiber laser to ensure high precision and high speed of laser cutting. The iGR-FH laser cutting machine can choose a variety of cutting areas: 1300mm*2500mm, 1500mm*3000mm, 1500mm*4500m, 2000mm*4000mmmm, and 2500mm*6000mm, and can also customize the cutting area according to customer requirements.

Send Inquiry Chat Now

Sheet Metal Laser Cutter

The sheet fiber laser cutting machine is a laser cutting machine specially designed for sheet metal, which uses a fiber laser generator as power. It uses the newly developed fiber laser generator, which can output a high-energy-density laser beam on the surface of the workpiece, melt and vaporize the area irradiated by the laser, and realize high-speed, high-precision perfect automatic cutting.

Most CNC laser cutting machines have a processing range of 0.3 mm to 25 mm, which is suitable for higher power models. The laser cutting machine can cut a variety of materials, including low carbon steel, stainless steel, aluminum, zinc steel, pre-galvanized steel, copper, brass, etc. CNC laser cutting uses various gases to assist the cutting process, including compressed air, nitrogen, and oxygen.

Laser Sheet Metal Cutter Advantages

Using a laser cutter for sheet metal offers numerous benefits:

Precision: Achieve intricate designs with tolerances as tight as ±0.001 inches.
Speed: Faster cutting speeds compared to traditional methods like plasma or waterjet cutting.
Versatility: Suitable for various metals, including stainless steel, aluminum, brass, and copper.
Minimal Waste: Optimized cutting paths reduce material waste.
Automation: Many laser cutters are equipped with CNC (Computer Numerical Control) systems for automated and repeatable operations.
The laser head adopts two-point centering adjustment, and the focusing mechanism is driven by servo motor, which can significantly improve the piercing efficiency.

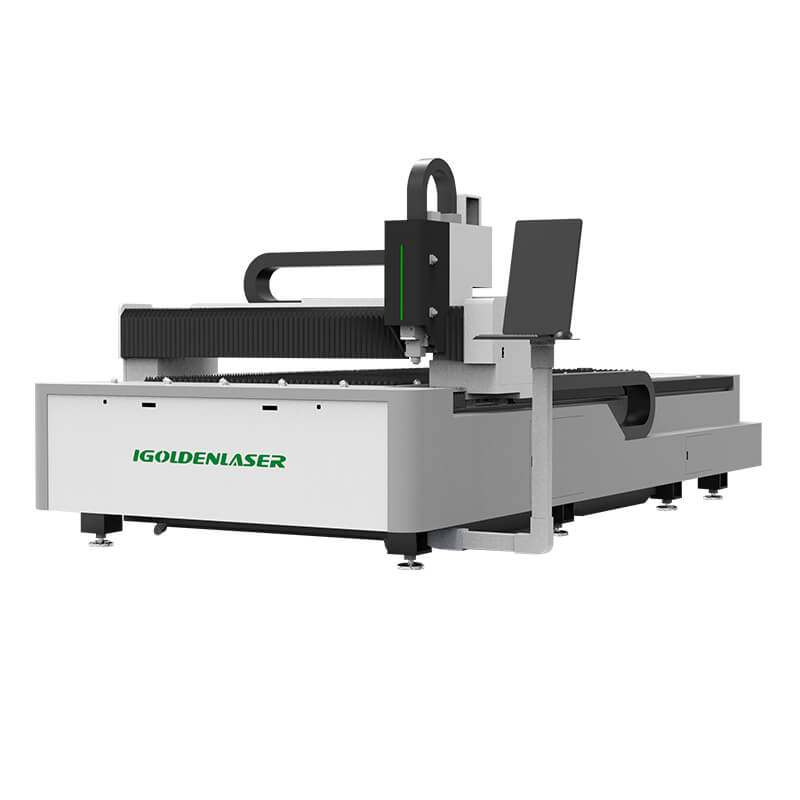

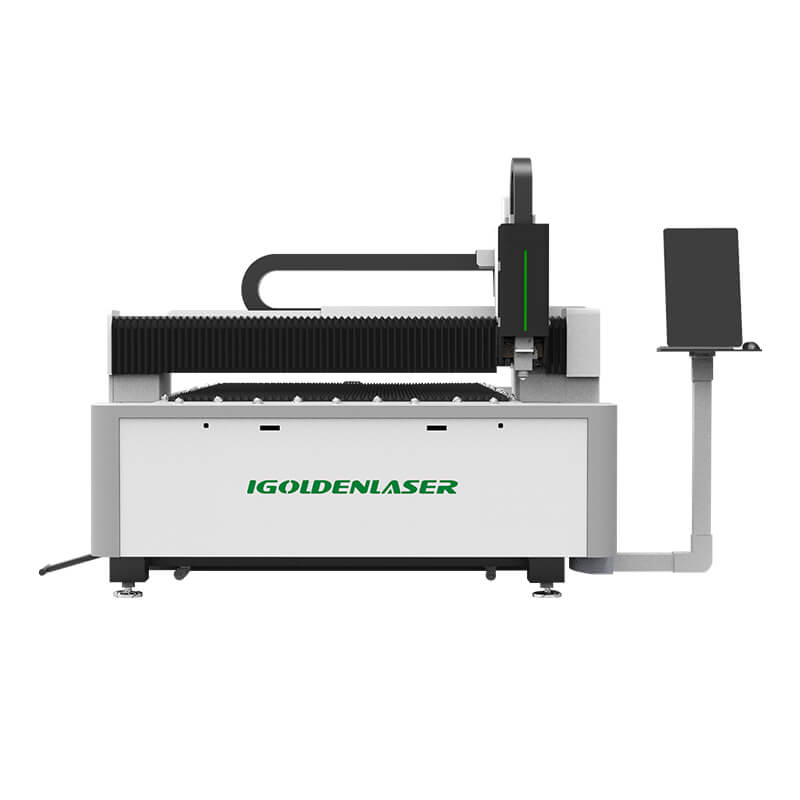

Laser Cutter for Sheet Metal

Technical indicators		parameter
Model		iGR-FH 3015
Working area		3050*1530mm
X axis stroke		1550mm
Y axis stroke		3100mm
Z axis stroke		60-120mm
Accuracy	X, Y, Z axis positioning accuracy	0.03mm
Accuracy	X, Y, Z axis repositioning accuracy	0.02mm
Speed	X, Y axis max. running speed	120m/min
	Z axis max. running speed	80m/min
	X, Y, Z axis max. accelerated speed	0.8G
Power supply	Phase	3
	Nominal voltage	380V
	Frequency	50/60Hz
Machine body	Max. working loading	800kg
	Body weight	4700kg
	Size(LWH)	47002200 2000
Laser power		1000w/ 1500w/ 2000w/ 3000w/ 6000w/12000w
Worktable optional		40002000mm/ 60002000mm/ 6000*2500mm

The maximum power of the machine can reach 12000W, the dynamic performance of the equipment is good, the servo response is fast, the slit is small, and the thermal effect is small. It is a good choice.

Get Price!

IGOLDEN Cutting Head

By optimizing the structural design of the cutting head to extend its service life,

Dual dust protection design, eliminate lens contamination risk, improve user experience.

Intelligent Control System

FANGLING plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.

Heavy-duty Welding Body

Higher tensile strength and dimensional stability, Effectively improve the accuracy of the bed, reduce the processing error of the workpiece.

Max Laser Source

Small weight, light weight, easy integration, high performance, more stable processing; The optical path module has good protection and high safety.

Application of Fiber Laser Cutting Machine

Laser cutting machines can quickly cut alloys, carbon steel, stainless steel, copper, aluminum, gold, silver, and titanium, making them ideal for diverse industries. They are frequently employed in manufacturing billboards, electrical enclosures, fences, doors, windows, and building materials. Additionally, their precision and efficiency make them indispensable for producing automotive panels and components, ensuring high-quality results across various applications.

Contact Us Today to Get Price!

Laser Cutting Machine Sheet Metal Buyer Guide

What is the sheet metal laser cutter?

Laser cutting, also known as laser beam cutting or CNC laser cutting, is a thermal cutting process often used in sheet metal processing.

Laser cutting can be used to cut various materials such as steel plates or aluminum plates, or three-dimensional objects such as profiles and pipes.

During the cutting process, a high-energy and highly focused laser beam is directed towards the workpiece. The process produces metal vapor and melt, which are blown out with the help of high-pressure airflow. The laser beam forms a cutting joint or cutting gap in the workpiece, and the cutting edge of the laser beam varies. Many different cutting tasks can be performed using laser beams. It ranges from cutting metals with a thickness of up to 30 mm to very precise incisions for extremely thin materials. CNC laser cutting is a process that uses different types of lasers, among which fiber lasers and CO 2 lasers are the most widely used industrial applications.

Compared with other processes, even in very small batches, CNC laser cutting can be used economically.

What materials can the sheet metal laser cutter cut?

Laser cutting machines can cut all types of metals, from mild steel to stainless steel and non-ferrous metals. More reflective metals such as aluminum are more difficult to cut. In these cases, fiber lasers are a better choice.

Lasers can cut many materials and are usually used to select several types of metals, especially carbon steel, low carbon steel, stainless steel, alloy steel, and aluminum.

Carbon steel: Steel is a mixture of iron and carbon. Carbon steel is steel with a, particularly high carbon content.

Low carbon steel: Compared with carbon steel, low carbon steel has a lower carbon concentration.

Stainless steel: Stainless steel adds a small amount of chromium to produce corrosion resistance.

Other steel alloys: Alloy steel is combined with one or more other elements to enhance its strength.

Aluminum: Aluminum is lighter than steel, so it is very useful.

In addition to these metals, lasers can also be used to cut many non-metallic materials, from wood to plastics to ceramics. However, it is most commonly used to cut metals, especially those listed above.

Why choose laser cutting for sheet metal processing?

Relatively low cost

Compared with other cutting mechanisms, laser cutting is very cost-effective. Since CNC automation is involved, labor costs are the lowest, because no one needs to operate these machines when using them. Instead, you just flip a switch and let it run. In addition, the laser will not become dull or worn like other cutting tools. For this reason, there is no necessary conversion in the intermediate process, thereby increasing productivity and shortening delivery time. When the interruption in the cutting process is minimal, the cost will be reduced.

Speed and efficiency

The laser can cut the material very quickly, moving 20-70 inches per minute. The exact speed will depend on the tolerance and complexity of the parts, however, they move very fast. Through multi-head laser or multiple lasers working at the same time, the cutting speed can be further improved. In addition to the fast cutting speed, the laser cutting machine can also work overnight without the operator, thereby improving the overall efficiency of the cutting process. The combination of these factors means that laser cutting machines will complete parts faster than other cutting processes.

Automation

One of the advantages of laser cutting is that the machine is completely controlled by CNC. Someone enters the code into the computer, resulting in almost no changes in parts and products, and a significant reduction in defects. Automation also means that less labor is required to operate the machine and perform its tasks, thereby increasing process efficiency. The automation of the cutting process brings higher efficiency and higher quality products.

High precision

The laser cutting machine has highly sophisticated features, capable of creating small cuts and tight tolerances. If you need complex cutting, a laser cutting machine is the best choice. They create smooth, sharp, and clean edges and curves. They also produce almost no burrs because the laser will melt the material instead of cutting it. Laser cutting machines are very suitable for sheet metal manufacturing because they are highly accurate and can perform accurate and high-quality cuts.

Highly versatile

Operating cost, machine speed, and simple operation make the laser cutting machine very suitable for products of any size. Because the laser cutting machine is accurate and precise, you can ensure that the final result is of the highest quality. Laser cutting machines can cut a variety of materials, including most metals, making them ideal for sheet metal manufacturing. They can handle tight tolerances and complex designs, ensuring that any project is within their scope. Laser cutting machines are also one of the fastest options for cutting sheet metal, ensuring that your project is completed on time with minimal interruption.

Unlimited customization

The ability to manufacture sheet metal according to your customers’ exact specifications adds to your company’s value proposition and customer appeal. Laser cutting allows you to cut materials quickly and accurately, regardless of the thickness of the metal plate or the complexity of the desired shape. Using the laser cutting method, you can deliver sheet metal jobs exactly according to the customer’s specifications every time.

How much does a sheet metal laser cutting machine cost?

How much does a sheet metal laser cutting machine cost? You might be wondering what the selling price of CNC machine tools is? How much does an entry-level CNC machine tool cost? What is the selling price of a small CNC machine tool? In fact, the selling prices of CNC routers of different brands are different. The price of IGOLDENLASER machines ranges from thousands of dollars to tens of thousands of dollars, or even hundreds of thousands of dollars. The price of a CNC machine depends on the size of the machine and the configuration of the parts. Each CNC machine of we can be customized according to the different processing needs of customers.
