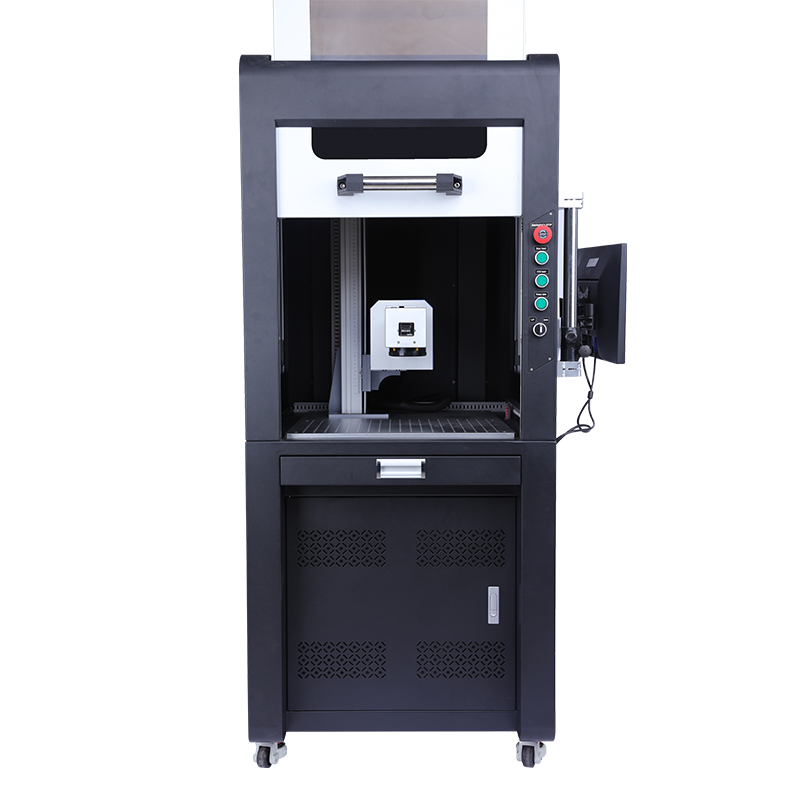

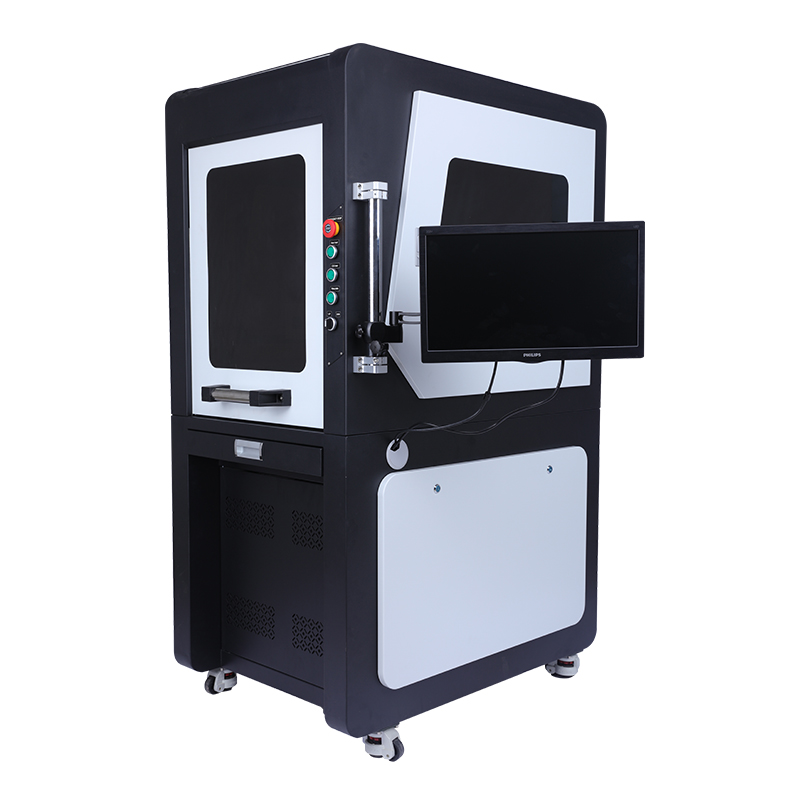

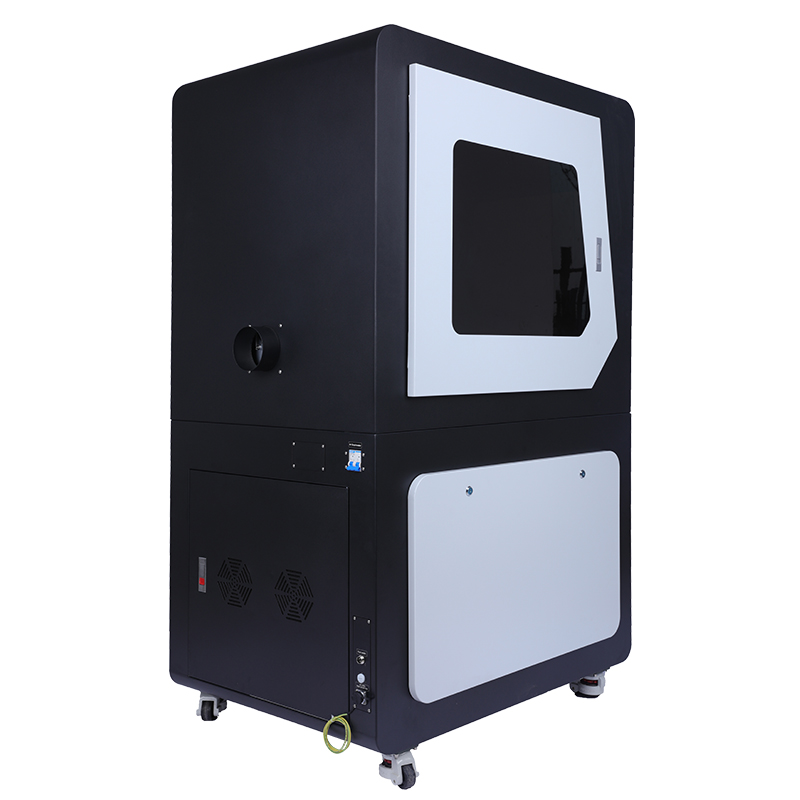

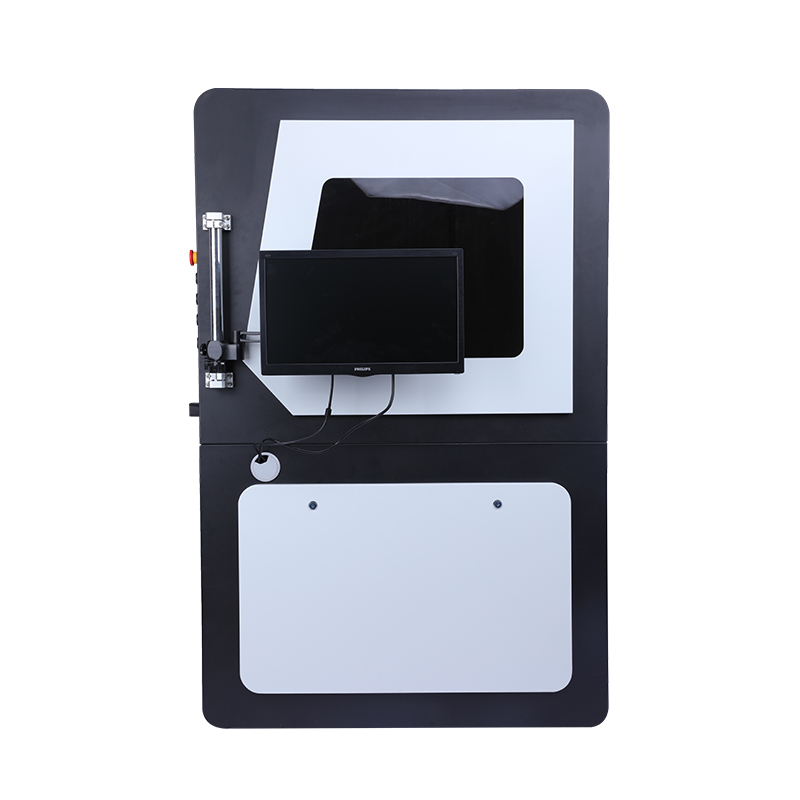

Vertical Compact Flooring Type Fiber Laser Marking Machine

Vertical full-protective fiber laser marking machine, in line with European CE standards, equipped with laser protective glass observation window, convenient and safe operation.Fiber marking laser is mainly used for marking on all metallic materials as well as some non-metallic materials such as: clear acrylic glass, leather, wood, plastic, etc.

Send Inquiry Chat Now

Category: Laser Marking Machine

Description
Reviews (0)

GR-L(C)

Vertical Laser Marking Machine

Fiber Laser Metal Etching Machine with Full Enclosed Cabinet，Perfect Laser metal etching machines can be carved both on metal materials and some non-metallic materials. The metal etching machines has a sealed structure. During work, fog will be kept in the enclosed laser cabinet without emission to outside. Environmental, friendly and healthy, this design is special for European market or other markets which have high demands for working environment.

Laser Marking Machine for laser engraving or marking on both flat and irregular surfaces. It uses 20W, 30W, 50W, 60W, 80W, 100W Raycus and JPT MOPA laser and works on a variety of metal materials like stainless steel, aluminum, etc.

Laser marking machines use a high-powered laser beam to make permanent marks on a variety of materials, including metals, plastics, ceramics, and glass. There are several different types of laser marking machines, including fiber laser, CO2 laser, and UV laser machines. Each type of machine uses a different type of laser and is best suited for marking certain types of materials.

Enclosed Laser Metal Etching Machine Features

1. This laser smoke purifier body is made of metal frame structure, it is durable.

2. The fume extraction system adopts micro-computer chip control system, supporting digital display and remote control.

3. Multi-layer filter element of the laser fume extractor can effectively remove harmful substances from smoke and has a long service life with filter failure alarm.

4. This smoke purifier adopts DC brush-less motor with stable performance, long life and low noise.

5. The impeller of fume extraction system is made of special alloy material, which is anti-corrosion, smooth operation and has large air suction capacity;

6.The laser fume extractor is equipped with an observation window, you can check the usage of filter element at any time.

Enclosed Laser Marking Machine Parameter Configuration

Laser Power	20W/30W/50W
Laser Wavelength	1064nm
Pulse Repeat Frequency	20-80kHz
Standard Marking Area	50—300mm
Marking Speed	≤7000mm/s
Min. Line Width	0.01mm
Min. Characters	0.15mm
Repeat Accuracy	±0.02mm
Total Power	500W
Voltage	220V/50Hz

Get Price!

Laser Module

Max/ Raycus/ IPG as your reference.

20w/30w/50w laser power as your requirement.

Stable operation, lifespan of more than 100,000 hours

Field Lens (Focus Lens)

Singapore Wavelength Focus Lens. Singapore imported high transmission field lens, small spot, high precision, fast speed, light transmittance above 99%.

Laser Protective Glasses

Laser protective glasses can prevent or reduce laser damage to human eyes. Laser goggles are highly efficient and safe goggles, which are comfortable, beautiful, safe and reliable

Rotation Axis

Marking and processing of arc surfaces, such as rings, thermos cups, etc., and an 8-station fixture is optional.

Application of Laser Marking Machine

1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.

2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material.

Contact Us Today to Get Price!

Production Facility

International Shipping Around the World

At IGOLDEN, we highly value customer feedback as it helps us to continuously improve and deliver exceptional products and services. We are always eager to hear from our customers and believe that such interactions are essential to our growth. We invite you to watch our video testimonials and witness the remarkable performance of our laser machines for yourself.

.Vertical Type Fiber Laser Marking Machines are all power, efficient and diligent to provide ultimate solution all industrial solution. High-speed and high precision scanning galvanometer can quickly engrave Chinese characters, English, batch number, date of production, validity period, LGO anti-counterfeiting code, etc. It satisfies the requirements of GMP in pharmaceutical industry and HACCP in food industry without any consumables, maintenance-free and cost-saving.
